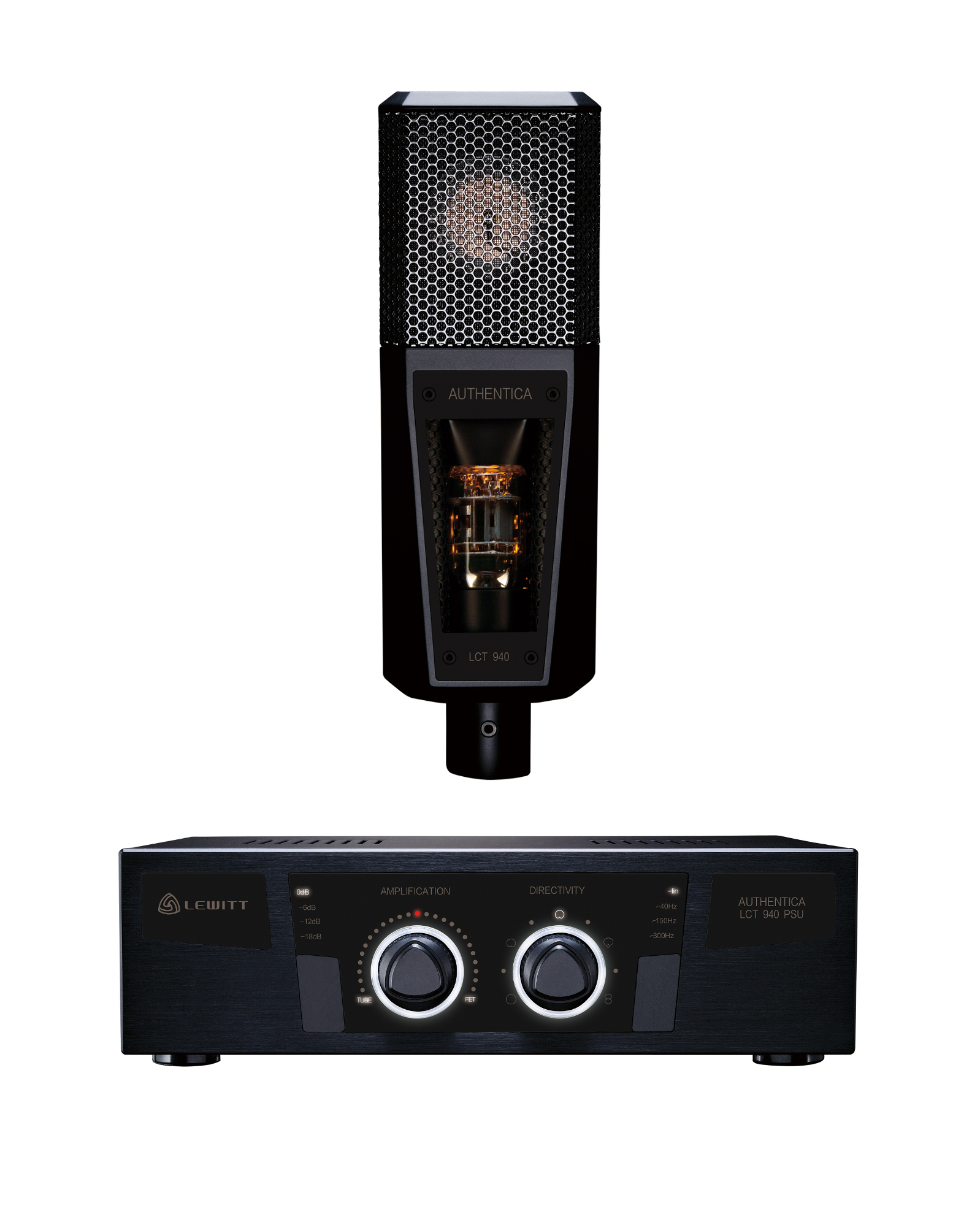

Lewitt LCT 940
Reference Class Tube/FET Microphone

OUR PART #  LCT940

Our Price: $1,699.00
List Price: $2,399.99
You save 29%! (Low Price Guarantee)
In Stock

Recommended Accessories

Sound professionals naturally rely on a set of different high-end microphones in order to get the best out of their sound. But changing microphones and adjusting settings takes valuable time, the creative flow of a session is interrupted. With its new Authentica series flagship LCT 940, LEWITT now introduces a microphone that will revolutionize modern studio recording procedures and help engineers and artists to react more quickly to a desired change of style and sound.

The LCT 940 combines the specific characteristics of a premium large-diaphragm FET condenser microphone and a top-notch tube microphone in one housing. Basically, users can choose between the two main settings "FET" and "Tube". Yet the decisive factor here is that the LCT 940 features both a tube-based impedance and a FET-based impedance converter. These two signal paths have been incorporated separately and work independently of each other.

"Tube" delivers the classic, warm and rich tube sound, while "FET" stands for the clear, exceptionally rich and nuanced sound LEWITT condenser mics are renowned for. However, the LCT 940 offers another unique feature that true recording enthusiasts will swoon over: As the characteristics of the two main settings can be mixed and merged continuously variable, the LCT 940 opens up huge creative possibilities for artists and producers.

Furthermore, the LCT 940 features a total of nine different polar patterns – our five "standard" polar patterns omni-directional, cardioid, figure-8, wide- and super-cardioid and four additional intermediate patterns. The microphone features three levels of attenuation and three switchable low-cut frequencies, LEDs and pushbuttons for noiseless handling on the PSU. Automatic attenuation and clipping history round off the outstanding featurelist of the LCT 940.

Rich in advanced technological features, the LCT 940 opens up a new dimension of sound reproduction in demanding professional studio applications. Its unrivaled set of qualities makes this microphone a must-have for recording pros who strive for nothing less than perfection.

Lewitt LCT 940 Includes:

  • Black aluminium case with foam layers includes:
    • PSU940 power supply unit with full-metal housing and milled, anodized black aluminium front
    • LCT 40 SHxx shock mount
    • LCT 40 Tr audio cable with gold-plated 11-pin XLR connectors to connect microphone to the PSU
    • LCT 40 Wxx windscreen
    • User Manual
    • Poster
    • Warranty Card
    • Sticker

Lewitt LCT 940 Features:

  • Combines tube and FET impedance converters in one michousing delivering maximum creative freedom
  • High-precision 1" capsule combined with a dual triodetube ensures beautifully detailed, smooth, warm and airy tube sound
  • Wide dynamic range of 128 dB-A (Tube) / 135 dB-A(FET) and extremely low self-noise of 12 dB-A (Tube) / 8 dB-A (FET)
  • Continuously variable switching and merging of the tube-based and the FET-based impedance converter via a rotating potentiometer
  • Nine directional characteristics – cardioid, omni-directional, figure-8, broad-cardioid, super-cardioid and four intermediate patterns – for perfect fine-tuning and maximum flexibility
  • User-friendly jog-dial for selecting the desiredpolar pattern
  • Solid die-cast body with a stylish, specially coated inspection window for optimal protection against electromagnetic interference
  • Noiseless pushbuttons for attenuation and HPFselection
  • Key-lock, clipping history and automatic attenuation
  • Illuminated user interface for quick and easy handling

Lewitt LCT 940 Specifications:

  • Acoustical operating principle:
    • pressure gradienttransducer,
    • externally polarized
  • Transducer: Ø  1" (25.4 mm)
  • Directional pattern:
    • omni
    • broad-cardioid
    • cardioid
    • super-cardioid
    • figure-8 and four additional intermediate patterns
    • selectable onremote control
  • Frequency range: 20 Hz - 20 kHz
  • Sensitivity:
    • 23 mV / Pa (-33 dBV), cardioid
    • 20 mV / Pa (-34 dBV), omni
    • 23 mV / Pa (-33 dBV), figure-8
  • Signal / noise ratio:  86 dB-A
  • Equivalent noise level (FET):
    • 8 dB-A, cardioid (IEC61672-1)
    • 9 dB-A, omni (IEC 61672-1)
    • 8 dB-A,figure-8 (IEC 61672-1)
  • Equivalent noise level (Tube):
    • 12 dB-A, cardioid (IEC61672-1)
    • 13 dB-A, omni (IEC 61672-1)
    • 12 dB-A,figure-8 (IEC 61672-1)
  • Dynamic range of FET mic. Amp.:  135 dB-A
  • Dynamic range of Tube mic. Amp.:  128dB-A
  • Max. SPL for 0.5 % THD (FET):
    • 143 dB,0 dB pre-attenuation
    • 149 dB, 6 dB pre-attenuation
    • 155dB, 12 dB pre-attenuation
    • 161 dB, 18 dB pre-attenuation
  • Max. SPL for 0.5 % THD (Tube):
    • 140 dB, 0 dBpre-attenuation
    • 146 dB, 6 dB pre-attenuation
    • 152 dB, 12dB pre-attenuation
    • 158 dB, 18 dB pre-attenuation
  • Pre-attenuation pad:
    • 6dB
    • 12 dB
    • 18 dB
    • selectable on remote control
  • Bass cut filter slope:
    • 12 dB / octave at 40Hz
    • 6 dB / octave at 150 Hz
    • 6 dB / octave at 300Hz
    • selectable on remote control
  • Rated impedance:  < 200 ohms
  • Rated load impedance:  > 1.000 ohms
  • Supply voltage:
    • custom power supply unit
    • 230V, 50 Hz
    • 110 V, 60 Hz
  • Current consumption:  170 mA
  • Connector:  gold plated 11-pin XLR
  • Cable:
    • 8 m (26 ft)
    • 11-pin audiocable
    • oxygen-free copper
  • Dimensions (Mic):  7.5 x 2.4 x 1.8 inch (192 x 60 x 46 mm)
  • Dimensions (PSU):  9.8 x 5.9 x 2.8 inch (250 x 150 x 70 mm)
  • Net weight (Mic):  23.3 oz (662 g)
  • Net weight (PSU):  68.1 oz (1930 g)
