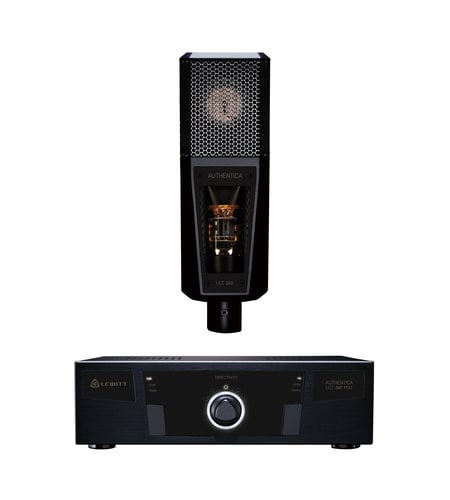

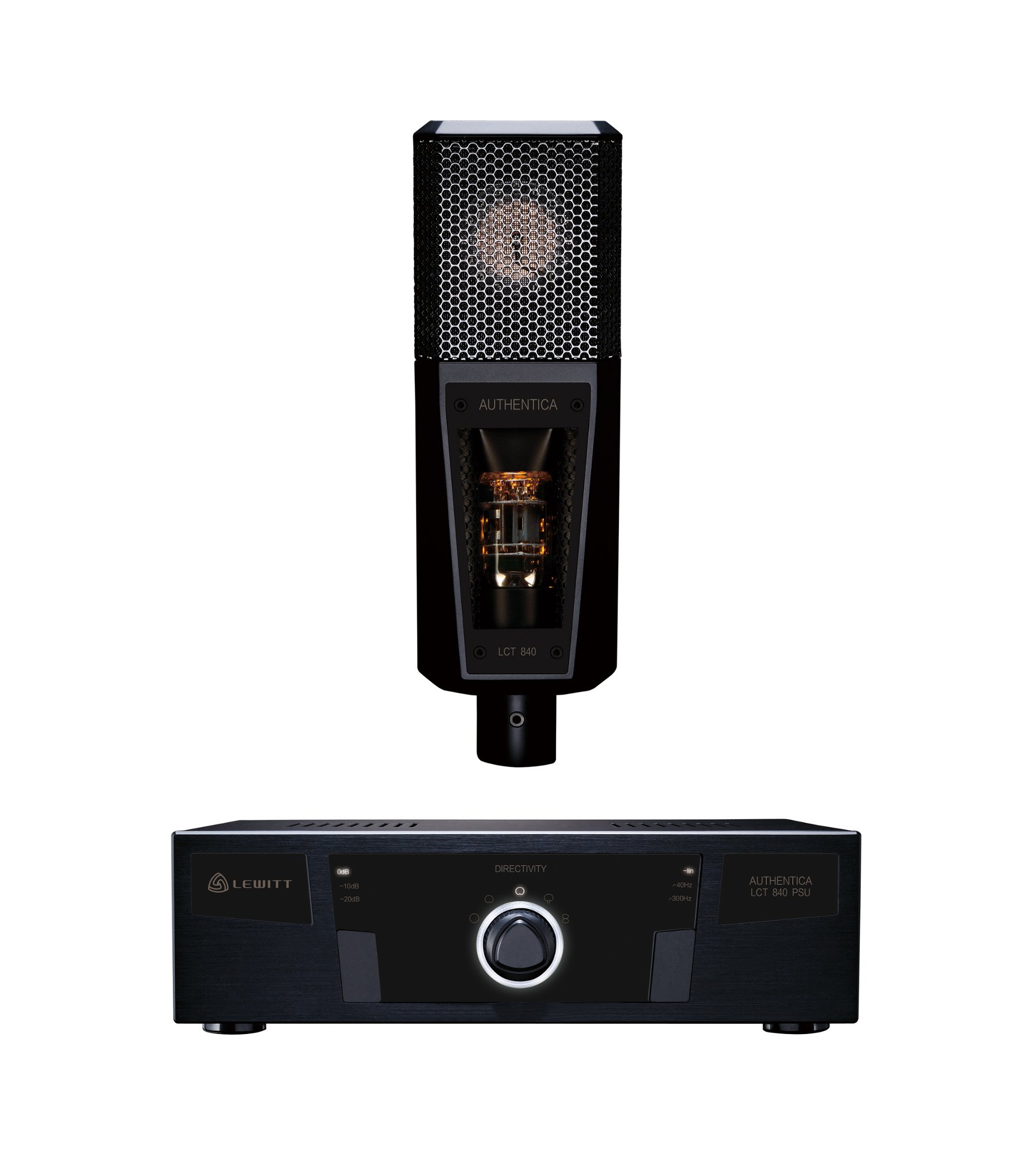

Lewitt LCT 840
Reference Class Tube Microphone

OUR PART #:  LCT840

LEWITT's LCT 840 is a premium-class externally polarized dual-diaphragm tube microphone designed to excel in a variety of demanding applications.
Learn More
Our Price: $999.00
List Price: $1,399.00
You save 29%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Lewitt LCT 840
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

LEWITT's LCT 840 is a premium-class externally polarized dual-diaphragm tube microphone designed to excel in a variety of demanding applications. Equipped with a precision-engineered 1-inch capsule, the LCT 840 stands for exceptionally warm and classic, solid vintage sound. Perfectly suited for miking vocals and instruments, this rugged multi-purpose mic allows for highly nuanced and authentic sound reproduction in the studio and even on stage. Five switchable polar patterns – omni-directional, cardioid, figure-8, wide-cardioid and super-cardioid – make the LCT 840 a highly versatile tool for professional audio engineers and performers looking for true and authentic tube sound.

Like all LEWITT microphones, the LCT 840 stands out for its extremely low self-noise level of 9 dB and effective rejection of off-axis sounds. The microphone features two levels of attenuation and two switchable low-cut frequencies, LEDs and pushbuttons for noiseless handling on the power supply unit (PSU).

Apart from user-friendly operating controls and advanced technological features so essential to memorable recordings, the LCT 840 also makes an eye-catching design statement: The mic is equipped with a plexiglass inspection window on the front side of the body, so the illuminated tube itself is fully exposed. The inside window surface is coated with a highly conductive, yet transparent film preventing electromagnetic interference.

In short: The unique combination of innovative design, high-end technology and tube-typical sound quality ensures magic takes.

LEWITT LCT 840 Includes:

  • Black aluminium case with foam layers includes:
    • PSU840 power supply unit with full-metal housing and milled, anodized black aluminium front
    • LCT 40 SHxx shock mount
    • LCT 40 Tr audio cable with gold-plated 11-pin XLR connectors to connect microphone to the PSU
    • LCT 40 Wxx windscreen
    • User Manual
    • Poster
    • Warranty Card
    • Sticker

LEWITT LCT 840 Features:

  • High-precision 1" capsule combined with a dual triode tube ensuresbeautifully detailed, smooth, warm and airy tube sound
  • Wide dynamic range of 130 dB-A and extremely low self-noise of 9 dB-A
  • Five directional characteristics – cardioid, omnidirectional, figure-8, broad-cardioid and super-cardioid – offer maximum flexibility
  • User-friendly jog-dial for selecting the desired polar pattern
  • Solid die-cast body with a stylish, specially coated inspection window foroptimal protection against electromagnetic interference
  • Noiseless pushbuttons for attenuation and HPF selection
  • Key-lock, clipping history and automatic attenuation
  • Illuminated user interface for quick and easyhandling

LEWITT LCT 840 Specifications:

  • Acoustical operating principle: pressure gradienttransducer, externally polarized
  • Transducer: 1 inch diameter
  • Directional pattern:
    • omni
    • broad-cardioid
    • cardioid
    • super-cardioid
    • figure-8
    • selectable on remote control
  • Frequency range: 20 Hz - 20 kHz
  • Sensitivity:
    • 23 mV / Pa (-33 dBV), cardioid
    • 20 mV / Pa (-34 dBV), omni
    • 23 mV / Pa (-33 dBV), figure-8
    • Signal / noise ratio: 85 dB-A
  • Equivalent noise level (IEC 61672-1):
    • 9 dB-A, cardioid
    • 10 dB-A, omni (IEC 61672-1)
    • 9 dB-A, figure-8 (IEC 61672-1)
    • Dynamic range of mic. Amp.: 130 dB-A
  • Max. SPL for 0,5 % THD:
    • 139 dB, 0 dB Pre-attenuation
    • 149 dB, 10 dB Pre-attenuation
    • 159 dB, 20 dB Pre-attenuation
  • Pre-attenuation pad:
    • 10 dB
    • 20 dB
  • selectable on remote control
  • Bass cut filter slope:
    • 12 dB / octave at 40 Hz
    • 6 dB / octave at 300 Hz
  • Rated impedance: < 200 ohms
  • Rated load impedance: > 1,000 ohms
  • Supply voltage: custom power supply unit
    • 230 V, 50 Hz
    • 110 V, 60 Hz
  • Current consumption: 170 mA
  • Connector: gold plated 11-pin XLR
  • Cable:
    • 8 m (26 ft)
    • 11-pin audio cable
    • oxygen-free copper
  • Dimensions (Mic): 7.5" x 2.4" x 1.8"
  • Dimensions (PSU): 9.8" x 5.9" x 2.8"
  • Net weight (Mic): 1.45 lbs.
  • Net weight (PSU): 4.175 lbs.
