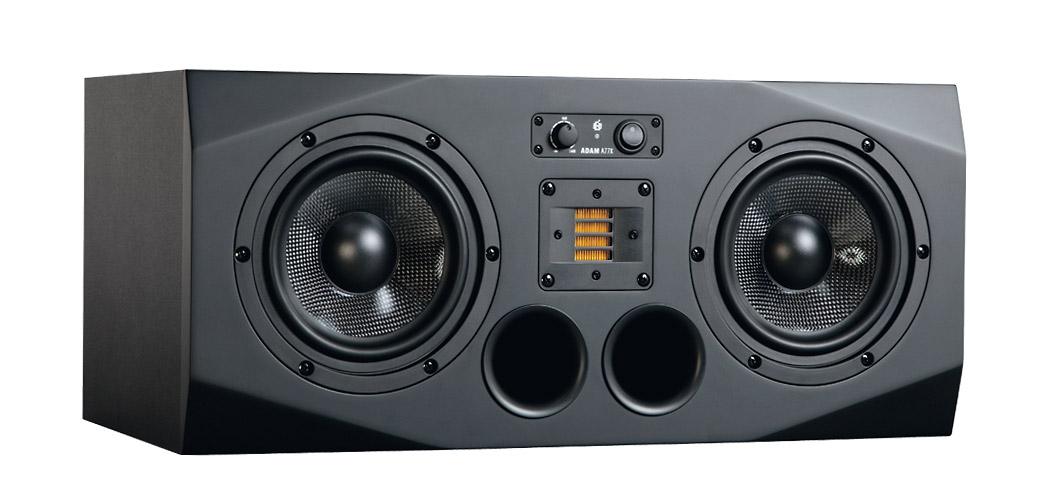

ADAM Audio A77X
2 x 7" Near-Field 3-Way Studio Monitor

OUR PART #:  A77X

ADAM Audio's A77X is equipped with the same advanced technologies as the A7X and is very similar to the two-way speaker.
Learn More
Selected Model Price: $1,249.99

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

ADAM Audio A77X
Select model: (shipping times are approximate)
Qty:

Similar Products

ADAM Audio's A77X is equipped with the same advanced technologies as the A7X and is very similar to the two-way speaker.  The A77X, however, distinguishes itself by much higher, compression-free maximum sound pressure levels and dynamics.  Due to its power and radiation characteristics, it also is perfectly suited for both near- and mid-field monitoring.

NOTE: Please specify the orientation you would like for this speaker: left or right.

Like all models of the AX series, the A77X features the ADAM proprietary X-ART tweeter.  The "X" stands for "eXtended frequency response" and thus for one of the features of the Accelerating Ribbon Technology that has been drastically improved: the frequency response.  It now extends all the way up to 50 kHz.  In addition, the X-ART tweeter has higher efficiency and higher maximum sound pressure levels.

The two 7" woofers are identical with that of the A7X.  With their large 1.5" voice coils and powerful amplifiers, they are capable of both very high maximum sound pressure levels as well as very deep registers.  The woofers do not cover the same frequency bands: while both of them are responsible for the (sub-) bass frequencies up to about 400 Hz, only one of them reproduces the midrange.  This prevents interferences between the two drivers.

Each driver has its own dedicated amplifier.  A 50W A/B amp is responsible for the X-ART tweeter, while the bass-/midwoofers are driven by a 100W PWM amp each.  The front panel includes a power switch and a control for the volume that retains the volume setting independently from the on/off switch.

The rear panel features several additional controls: a gain for the high frequencies (± 4dB) and two shelf filters for high and low frequencies.
 To ensure greater compatibility, there are both XLR (balanced) and RCA (unbalanced) connectors.

ADAM Audio A77X Specifications:

Subwoofer:

  • Number: 2
  • Basket Diameter: 7" (175 mm)
  • Voice Coil Diameter: 1.5" (38 mm)
  • Cone material: Carbon / rohacell / glass

Tweeter:

  • Nrumber: 1
  • Type: X-ART
  • Diaphragm Area: 4 inch² (2420 mm²)
  • Equiv. Diaphragm Diameter: 2" (56 mm)
  • Velocity Transform Ratio: 4:1
  • Diaphragm Weight: 0.17 g

Built-in Amplifiers:

  • Subwoofer: 1
    • Type: PWM
    • Amp. power:
      • RMS: 100W
      • Music: 150 W
  • Subwoofer: 1
    • Type: PWM
    • Amp. power:
      • RMS: 100W
      • Music: 150W
  • Tweeter: 1
    • Type: A/B
    • Amp. power:
      • RMS: 50W
      • Music: 75W

Control Panel:

  • Input Sensitivity: - infinity to +14 dB
  • High Shelf EQ > 5 kHz: ±6 dB
  • Low Shelf EQ < 300 Hz: ±6 dB
  • Tweeter Gain: ±4 dB

Input Connectors:

  • Analog: XLR / RCA
  • Location: Rear

General Data:

  • Panel: Front
  • Frequency Response: 38 Hz - 50 kHz
  • THD 90dB/1m > 100 Hz: < or = 0.5 %
  • Long term output: > or = 114 dB
  • Max. Peak: > or = 122 dB
  • Crossover Frequencies: 400 / 3000 Hz
  • Input Impedance: 30 KOhms
  • Weight: 28.2 lbs (12.8 kg)
  • Magnetically Shielded: No
  • Dimensions: 9.5" H x 21" W x 11" D (235 x 530 x 280 mm)
  • Warranty: 5 Years
