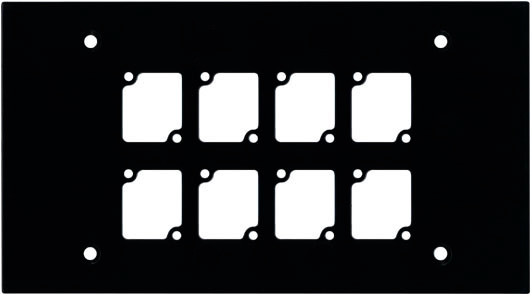

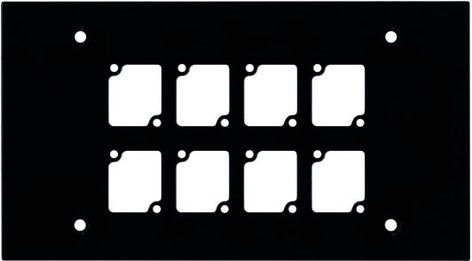

Ace Backstage WP408 Aluminum Wall Panel with 8 Connectrix Mounts, 4 Gang, Black

The CONNECTRIX Wall Panel System expands connectivity possibilities utilizing Ace Backstage's own panel cutout detail and an ever-growing array of isolated panel mount connectors that can't be found anywhere else. Their system combines the popular mounting pattern of Neutrik® "D" and Switchcraft® "E" series connectors with a generous rectangular cutout that mates with a growing selection of adapter-mounted CONNECTRIX Connectors. This system allows FAST order turn around and REDUCED PRICING when compared to custom punched panels with the same connectivity. CONNECTRIX Wall Panels are customized by your specific connector indication with off-the-shelf stock prices and immediate delivery. The CONNECTRIX Wall Panel Series (#WP-100, #WP-200, #WP-300, #WP-400, and #WP-600) are flat and strong. Panels are made from high strength aluminum alloy (6061-T6) that is .062" thick (1/16") and do not bend under extreme push and pull of mounted connections.

Because CONNECTRIX Wall Panels are CNC rotary machined (not punched) they stay flat, unlike punched panels which distort in the punching process. CONNECTRIX panels are stocked in an assortment of standard gang sizes and are finished with electro-static applied, oven cured black or white powder coat. Rotary engraving is a CONNECTRIX customization that is permanent, does not require back-filling, and can include your company logo design. ACE custom engraved panels ship in an average of 5 days from time of order.

CONNECTRIXWall Panel System, it is possible to mount various combinations of CONNECTRIX Connectors* without a single custom punch. ACE can create a customized CONNECTRIX Wall Panel that will work in most any installation application. Connectors are loaded into panels using black, aluminum pop rivets. You may also choose to have your connectors loaded with removable machine screws and locking nuts, for a nominal fee. All ACE CONNECTRIX System Wall Panels will mount in standard gang wall mounts and each is supplied with #6 screws.

Features:

• FLEXIBLE CONNECTOR MOUNT: WP-400 Series CONNECTRIX Wall Panels utilize a custom machined CONNECTRIX System Cutout which combines the popular mounting patterns of the Neutrik® "D" and Switchcraft® "E" series connectors with a generous rectangular cutout that mates with a growing array of adapter-mounted standard connectors.
• DURABLE CONSTRUCTION: ACE CONNECTRIX System Wall Panels are machined from tough 1/16" thick Aluminum Alloy (6061-T6) on a dedicated CNC routing machine. Stock Wall Panels are flat, strong, and rigid like typical thinner mild steel panels. As a consequence of the panels being machined and not punched they remain flat and undistorted unlike punched panels which distort in the punching process.
• COMPACT CONNECTOR CAPACITY: One (1) #WP-400 Series CONNECTRIX Wall Panel will mount up to 12 CONNECTRIX Connectors.
• EASY INSTALLATION:Standard CONNECTRIX Wall Panels mount with (2 to 8) #6 screws. Each Wall Panel is CNC machined to precisely mate with the designated connectors and in standard gang wall mounting holes.
• DURABLE FINISH: Oven cured, semi-gloss, black or white powder coat.
• CUSTOM ENGRAVING: Most Wall Panels provide header space for custom engraving which is fast and easily accomplished on a separate dedicated CNC engraving machine. The finished panels show bright aluminum in the engraved characters and need not be back filled.
• CUSTOM PANELS AT A LOWER COST: The CONNECTRIX System expands connectivity possibilities by providing more connectors and mounting options in stock ACE Wall Panels. The benefit is fast order turn around and lower cost than a custom punched panel. The look of custom fabricated panels with off-the-shelf stock prices and immediate delivery.
• Note: Connectrix system aluminum wall panels use Neutrik® "D" mounting hole patterns.
• *Note: Specific High Density (HD) and Sub-D pattern connectors will require either 2 or 3 CONNECTRIX Horizontal Spaces or 2 or 3 CONNECTRIX Vertical Spaces, depending on connectors selected.
