Ace Backstage Co. 102DDBBXW

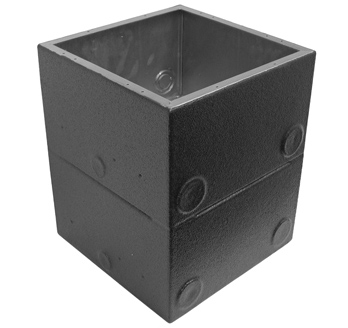

Double Deep Backbox, Full, Wet

OUR PART #:  102DDBBXW

Polyurethane encapsulated back boxes are available to provide extra protection from incursion of moisture and water by sealing seams, knock-outs, and holes.
Learn More
Our Price: $190.23
List Price: $242.03
You save 21%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Ace Backstage Co. 102DDBBXW
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Polyurethane encapsulated back boxes are available to provide extra protection from incursion of moisture and water by sealing seams, knock-outs, and holes. Using our standard double zinc plated back boxes (BBX) a 1/16" thick jacket of polyurethane is applied to the exterior sides and bottom of the back boxes, permanently bonding with surfaces to form a moisture resistant seal. The polyurethane back box provides protection against harsh climate, chemicals, impact and abrasion. All polyurethane back boxes will have a model number suffix of "W".

The #102BBXW Back Boxes are welded 14 gauge steel with a protective cover that is discarded when the pocket body is finally installed. The box and cover have a clear zinc corrosion resistant finish. A 1/2” mounting flange is predrilled to mate with the pocket body flange The pocket body assembly is 4.5” deep and the back box is 6” deep providing a 1.5” work clearance in the bottom of the back box (ideal for feed thru or distribution junction).

The clearance volume (volume between bottom of pocket body and bottom of back box) is 144 cubic inches in the #102BBXW. ACE polyurethane encapsulated Back Boxes come with standard Electrical Conduit Combination 1/2”, 3/4”, 1”, and 1-1/4” Knock Outs, 2 places typical on opposing sides and Electrical Conduit Combination 1/2” and 3/4” Knock Outs, 1 place typical on opposing sides (see spec sheets).

Features:

  • Moisture Protection
  • Clearance Volume
  • Durable Construction
  • Easy Installation
  • Durable Finish
  • Electrical Knockouts
  • Protective Cover

Specifications:

  • 102BBXW Series Back Box Capacity = 1 Full Stage Pocket
  • BBXW Series Back Box Coating = Black 1/16" thick coating of polyurethane
  • BBXW Series Back Box Finishes = Clear zinc corrosion resistant finish
  • BBX Series Back Box Material = 14 Gauge Steel (.071" Thick)
  • 102BBXW Series Back Box Size = 10.000” W x 6.000” H x 10.000" L
