Source Audio SA170
Programmable EQ Pedal

OUR PART #:  SA170

The Source Audio Programmable EQ is a thoroughly modern and highly streamlined upgrade to traditional equalizer pedals.
Learn More
Our Price: $149.00
List Price: $209.00
You save 29%!

4.0 / 5

★★★★★ 1 Review. Write Yours
Source Audio SA170
Please call for availability.

Related Products

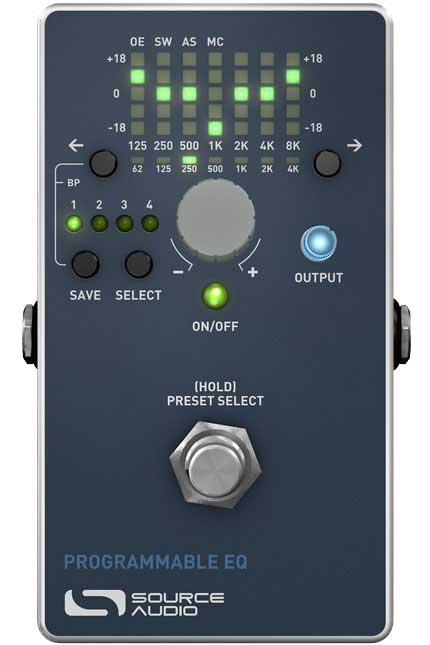

The Source Audio Programmable EQ is a thoroughly modern and highly streamlined upgrade to traditional equalizer pedals. This compact, rugged, cast aluminum stompbox provides quick, hands-free access to four different user programmed EQ settings. Whatever your instrument, playing style, or genre, the Source Audio Programmable EQ is the essential tone-sculpting tool for your live rig.

The Programmable EQ packs plus or minus 18dB of range over seven frequency bands, plus an additional frequency band at 62Hz, accessible via the Octave Extend function. Engaging the Octave Extend systematically optimizes the pedal’s frequency spectrum to accommodate the specific frequency range of the bass. Once you’ve dialed in the desired guitar or bass tone, save it in one of four programmable user presets. Each preset is easily accessible via the hands-free footswitch scrolling function. Simply hold down the footswitch and let the pedal scroll through each preset at an adjustable rate – release to engage. The pedal’s MIDI input also provides remote access to user presets or engages/disengages the effect. Run a MIDI signal from your POD, Eventide Space reverb, TC Nova System or any other MIDI compatible multi-effects unit and vastly expand your tone horizon within each preset.

The Programmable EQ offers a substantial clean boost of up to 12dB. Use the clean boost for an entirely transparent volume increase or go further and give your amp the front-end push needed for an aggressive natural break-up. The relay-based true bypass footswitch provides improved reliability, remote switching capabilities, and a completely unaffected, hard wire signal in bypass mode. As a bonus, the Auto-scrolling function, which automatically scrolls between all four presets at an adjustable rate, creates unique and dramatic effects similar to sequencer or tremolo units.

The pedal runs on a 9V battery (included) or with an optional external power supply.

Source Audio SA170 Specifications:

  • +/- 18dB range over seven frequency bands
  • Four independent programmable user presets easily recalled via the Footswitch
  • Octave Extend Function: optimizes the EQ for bass with an additional freq band at 62Hz
  • Small Footprint: A compact, rugged, cast aluminum housing
  • 12dB of clean boost
  • Auto-scrolling function: automatically scrolls through all four presets to create unique and dramatic effects similar to sequencer or tremolo units
  • Hardwire “True” Bypass: utilizes a small-signal relay for improved reliability and remote switching capabilities
  • MIDI input: recall presets, engage/bypass remotely via MIDI
  • State-of-the-art DSP — our proprietary 56-bit Digital Signal Processor, the SA601 and crystal-clear 24-bit converters
  • Dimensions (LxWxH): 4.5" x 2.5" x 2" (11.4 x 6.4 x 5.1cm)
  • Runs on a 9V battery (included) or power supply (not included)

Click to download

4.0 / 5


Reviewed by 1 customer.
(1 is a Verified Buyer.)

Write a Review

Display Only Verified Reviews


There are no reviews to display with the selected filters.

Don W on 02/03/2018 ✔ Verified

A unique and useful piece of gear that allows me to create EQ/level presets for my different guitars and recall them with the press of a button, without having to change any settings on the rest of my gear. Some compromises were made in its operation due to the small size of the unit and limited front panel space, but I'm happy with the compromises in order to have this tool on my pedalboard. I bought another one used so I use two in completely different rigs.
