DPA Microphones ST4006A
Stereo Microphone Pair with (2) 4006A Omnidirectional Microphones

OUR PART #:  ST4006A

The DPA ST4006A is a complete DPA 4006A Stereo Pair with two carefully factory-matched omni microphones.
Learn More
Our Price: $3,999.95

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DPA Microphones ST4006A
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The DPA ST4006A is a complete DPA 4006A Stereo Pair with two carefully factory-matched omni microphones. Even though the standard tolerances on DPA Reference Standards are extremely low, a stereo match is even closer.

The specially selected DPA 4006A microphones are matched within ±0.5 dB on both frequency response and sensitivity. The maximum phase response difference is 5°.

The natural sound, high sensitivity, low noise-floor and extremely linear frequency response from 10 Hz to 20 kHz (±2 dB) of the microphone pair makes the ST4006A the perfect choice for all AB Stereo recordings. The design in the heavy-duty transportation box allows for fast and easy exchange of microphone/accessory foam inlays.

Features:

  • Carefully matched microphones
  • High sensitivity, low noise-floor and extremely linear frequency
  • Peli case transportation and protection

Specifications:

  • Directional pattern:  Omnidirectional
  • Principle of operation:  Pressure
  • Cartridge type:  Pre-polarized condenser
  • Frequency range:  10 Hz - 20 kHz
  • Frequency range, ± 2 dB:  10 Hz - 20 kHz
  • Sensitivity, nominal, ± 2 dB at 250 Hz:  40 mV/Pa; -28 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted:  Typ. 15 dB(A) re. 20 µPa (max. 17 dB(A))
  • Equivalent noise level, ITU-R BS.468-4:  Typ. 27 dB (max. 29 dB)
  • S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL):  Typ. 79 dB(A)
  • Total Harmonic Distortion (THD):  < 1 % up to 139 dB SPL peak
  • Dynamic range:  Typ. 124 dB
  • Max. SPL, peak before clipping:  147 dB
  • Switchable attenuator:  0 dB / -20 dB
  • Output impedance:  < 200 ohm
  • Minimum load impedance:  2 kohm
  • Cable drive capability:  100 m (328 ft)
  • Output balance principle:  Impedance balancing with Active Drive
  • Common Mode Rejection Ratio (CMRR):  > 60 dB
  • Power supply (for full specifications):  48 V Phantom power (± 4 V)
  • Current consumption:  2.8 mA
  • Connector:  XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
  • Color:  Matte black
  • Weight:  163 g (5.7 oz)
  • Microphone diameter:  16 - 19 mm (0.6 - 0.75 in)
  • Capsule diameter:  16 mm (0.6 in)
  • Microphone length:  170 mm (6.7 in)
  • Output voltage, RMS:  > 5 V
  • Polarity:  +V at pin 2 for positive sound pressure
  • Temperature range:  -40 °C to 50 °C (-40 °F to 122 °F)
  • Relative Humidity (RH):  Up to 90%
  • Classification:  Conforms to IEC 61672 Class I (with Near-field Grid DD0251)
  • Matching tolerance:  ± 0.5 dB
  • Phase deviation for kit:  < 5°

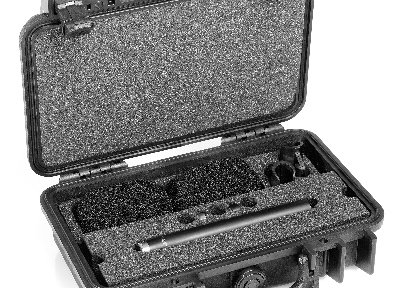

What's Included:

  • Two carefully matched 4006A omni microphones
  • Sturdy Peli case
  • Holders
  • Grids
  • Windscreens.
