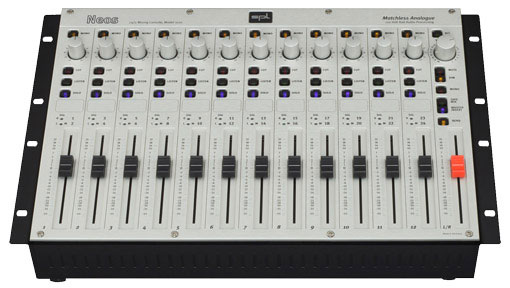

SPL Sound Performance Lab NEOS
21Ch Analog Summing Mixer

OUR PART #  NEOS

Our Price: $9,999.00
List Price: $10,999.00
You save 9%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

The Neos is the first summing and monitoring console based on our proprietary 120-volt technology. The basic concept behind it was to combine essential summing capabilities, including faders and panorama controls, with a complete and practical monitoring section — all in a compact design. Accordingly, it fulfills the highest expectations regarding sound quality in mixing and monitoring situations.

Thus, the Neos was conceived with sound engineers that set great importance on artistic and musical production in mind and whose workflow does not rely primarily on undo and preset options. Nevertheless, the compact Neos can integrate seamlessly in computer-based environments providing the characteristic high-quality sound and handling of analog devices.

24 channel summing console with faders and panorama controls

Ideal for DAW-based studios with emphasis on audio quality

Features:

  • Input path with 100-mm ALPS faders, Pan controls, Mono, Cut, Solo, and “To Monitor Only” push buttons, signal LEDs
  • Master path with 100-mm ALPS faders, Inserts, Bend function (Limiting)
  • Comprehensive monitoring section with Volume control, Tape Mix (DAW return), as well as Mute, Dim and Mono push buttons
  • Input: three eight-channel DB25 connectors (balanced, TASCAM standard); balanced XLR connectors: Slave, Insert Return, Tape Return
  • Output connectors (balanced XLR): Recording Out, Monitor A and Monitor B,
  • Output connectors (unbalanced XLR): Alternative Out, Insert Send, Metering
  • Unique 120-volt operating voltage. In comparison with common production mixers, the Neos mixing and monitoring console uses four times as much operating voltage. A higher voltage results in better performance: over 30 dB of headroom at the input, more than 122 dB of dynamic range, 92 dB signal-to-noise ratio over all channels.
  • At the core of the 120-volt technology are our handmade, discrete op-amps with 116 dB signal-to-noise ratio and 34 dB of headroom. The 150 dB dynamic range covers a frequency range of up to 200 kHz. These key figures are way beyond the demands of current PCM digital formats with 24 bit/192 kHz sample rates and DSD digital formats with 1 bit and 256 fs. It is not expected for digital technology to evolve so much in the foreseeable future as to make the Neos a bottleneck in the signal processing path.
  • All selected components for each unit are matched at the pre-production stage
  • Important switching functions are performed via sealed relays
  • Oversized signal traces, generous PCB layout for greater trace separation,star ground scheme, linear power supply

Specifications:

  • Electronically balanced instrumentation amplifiers
  • Sockets: Inputs DB25/TASCAM, XLR; Outputs: XLR
  • Input Impedance: 10 k?Ohm balanced; 20 ?kOhm unbalanced
  • Output Impedance: 75 Ohm balanced; 75 Ohm unbalanced
  • Nominal Input Level: +4?dBu
  • Maximum Input Level: › +30?dBu (30?dBu = limit of measuring equipment)
  • Maximum Output Level: › 24?dBu
  • Frequency Range (-3?dB): 10?Hz to ›?200?kHz
  • Phase    1kHz: 0°, 10kHz: -4,5°, 20kHz: -8.30°
  • Common Mode Rejection Ratio: › 60?dB
    (Rec. Out, Insert Send, Monitor A/B)
  • Total Harmonic Distortion
  • 10Hz Rec. Out: 0.0011%, Insert Send: 0.0011%, Monitor A/B:0.0016%
    100Hz Rec. Out: 0,00060%, Insert Send: 0.0009%, Monitor A/B:0.0016%
    1000Hz Rec. Out: 0.00090%, Insert Send: 0.0013%, Monitor A/B:0.0020%
    5000Hz Rec. Out: 0.0032%, Insert Send: 0.003%, Monitor A/B:0.004%
    10kHz Rec. Out: 0.0028%, Insert Send: 0.0018%, Monitor A/B:0.0027%
    22kHz Rec. Out: 0.00054%, Insert Send: 0.00050%, Monitor A/B:0.0005%
    (Generator output 24dBu, inputs terminated with 40?dBu)
  • Signal to Noise Ratio (all channels)
    Rec. Out: 92 dBu, Insert Send 92dBu, Monitor A/B: 88dB
    (A-weighted, 22?Hz - 22?kHz, inputs terminated with 40?dBu)
  • Dynamic range: › 122?dB
  • Linear power supply with toroidal transformer
  • Operational Voltage : +/- 60Volts  (120 Volts)
  • Power Consumption (Standby, 230 Volts/50Hz): 0.420A, 75W, 97,8VA
  • Fuses: 230V AC/50Hz: 315 mA; 115V AC/60Hz: 630 mA
  • Voltage Selector: 115?V/230?V
  •  Front panel including rack brackets: 19"/7?U (483 x 310 mm)
  • Front panel without rack brackets: 440?mm
  • Housing (W x H x D): 483 x 235 x 330?mm, depth incl. sockets: 355?mm
  • Weight: 14.1?kg/ca. 31.08?lbs
  • External Power Supply: W x H x D 154 x 67 x 236?mm, weight: 3?kg/6.61?lbs
  • Notes:
    0 dBu = 0,775 V. All measurements at unitygain.
    Specifications are subject to change without notice.
