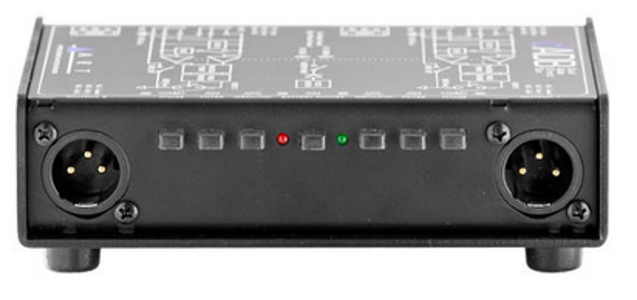

ART dADB
Dual Active Direct Box

OUR PART #:  DADB

The ART dADB dual active direct box acts as two independent, high quality active interfaces for connecting instrument, line, or speaker level signals to balanced inputs.
Learn More
Our Price: $65.00
List Price: $80.00
You save 19%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

ART dADB
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The ART dADB dual active direct box acts as two independent, high quality active interfaces for connecting instrument, line, or speaker level signals to balanced inputs. The high impedance 1/4" inputs are buffered and converted by extremely low noise active electronics to deliver isolated, balanced, low impedance outputs. The dADB delivers an extremely flat and wide frequency response even at high input levels, making it a virtually acoustically transparent DI solution.

Input attenuation on each channel allows for a wide range of source signal levels. Independent parallel thru jacks allow for tapping the signal chains. A Ground Lift on each channel allows for totally separate the input and output signal grounds to isolate two systems when required, thus reducing hum and ground-loop noise.

Switchable low pass Bessel filters eliminate high frequency interference. Operating outside of the audio range these complex and effective filter circuits are primarily intended to eliminate radio frequency interference before it gets into the main system. They also effectively reduce digital computer noise making the dADB the ideal DI solution for laptops, computer workstations and peripherals when used in stereo PA applications.

The dADB's active circuitry is powered by phantom power or by an internal 9V battery when external power is not available. Low current draw (less than 7.5 mA) should provide more than 100 hours of operation with a new battery (alkaline recommended). The compact black all steel case and active design ensure unmatched long-term reliability in Live Sound, Permanent/Fixed Install, D.J., or virtually any PA application.

ART DADB Features:

  • Fully Active Design
  • Operates on Phantom Power or 9V Battery
  • Converts High-Impedance Balanced / Unbalanced Inputs Into 600 Ohm Balanced Outputs
  • Switchable Input Attenuation (0, -20, -40 dB)
  • Independently Switchable Low Pass Filter on each Channel
  • Independently Switchable Phase Invert on each Channel
  • Independently Switchable Ground Lift on each Channel
  • 1/4" TRS Connector Inputs and Thru Connections
  • XLR Connectors for Balanced Outputs
  • Rugged Steel Case

ART DADB Specifications:

  • Input Connections: 1/4" TRS balanced / unbalanced (2), 470k Ohm
  • Thru Connections: 1/4" TRS (2)
  • Output Cannections: XLR male balanced (2), <600 Ohm
  • Input Attenuation: Switchable (0dB, -30dB)
  • Frequency Response: 10 Hz - 100 kHz +/- 0.5 dB @ +0 dBu
  • THD: <.05% (typical)
  • Dynamic Range: > 100 dB (typical)
  • Channel Separation: > 80 dB (typical)
  • Maximum Input Level: +4, +24, +44 dBu (depending on attenuator setting)
  • Maximum Output Level: +6 dBu (battery powered), +14 dBu (phantom powered)
  • Power Requirements:
    • 9V @ 7.5 mA (battery, alkaline recommended)
    • 18-48V DC @ 6.4 mA (phantom power , per channel)
  • Dimensions: 2" x 5" x 5.75" (51 x 127 x 146 mm)
  • Weight: 2.7 lbs (1.22 kg)
