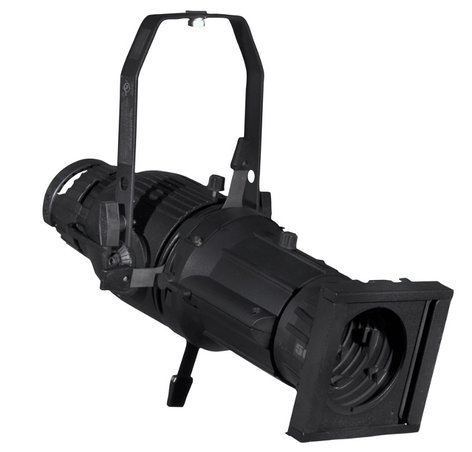

Altman PHX ERS 750W Ellipsoidal with 19 Degree Lens

This 19° fixed focus Phoenix ellipsoidals from Altman Lighting is state of the art for luminaires in function, style, and efficiency. This ellipsoidal has been designed and engineered with a number of innovative details and features enhancing versatility and efficiency without sacrificing performance. To broaden the capabilities of the fixture Altman offers it with the choice of either a GLA or HPL series lamp. Fully locking shutters and a 360° rotating barrel help keep the artistic part of your fixture’s focus intact and easy to attain, and with virtually no light leak from the fixture itself you won't have to worry about any extra light illuminating unwanted parts of the ceiling. The aesthetic appearance and ergonomically designed function controls only add to the appeal. All of these new and innovative options are what makes the Phoenix ellipsoidals ideal for theatres, night clubs, television studios, or wherever superior, energy efficient lighting performance is required.

Altman PHX-19-B Features:

• Compatible with GLA or HPL series in 375W, 575W and 750W compact filament lamps
• 360° rotating barrel
• Locking shutter
• Completely enclosed accessory holder
• Heat resistant Plano-Convex Lensing
• Die cast aluminum and sheet metal fabrication
• Color frame and spring clip safety cable included
• Tool free interchangeable barrels
• 3 foot power cable
• C-Clamp included with fixture
• 16 lbs.
• ETL & cETL listed
• Made in the USA

Altman PHX-19-B Specifications:

• Housing: Die-cast aluminum construction
• Materials: Construction employs corrosion-resistant materials and hardware
• Yoke: Rigid flat steel with dual locking dog tilt handles, two mounting positions, indexed tilt angle markings
• Reflector: Spring mounted dichroic coated glass, ellipsoidal design
• Lenses: Color coded crown glass (white plate) lenses provided with anti-reflective coating. Molded front lens made out of polymeric plastic for 5° and 10° units only
• Socket: G9.5 medium two pin GL or HPL lamp holder axially mounted, supplied with heat shield. Tool free re-lamping
• Rating: 100, 120, 240 Volts AC/DC operation, 6.3/3.1Amps, 750 Watts maximum
• Cable: 36” Teflon leads incased in black fiberglass sleeving, rear cord wrap provided
• Shutters: Four .037” stainless steel, fully adjustable and lockable. Constructed with oversized heat resistant handles
• Access Door: Reversible access door with thumb screws
• Focusing Lamp: Fully adjustable in three axis with two concentric Ultem 2100 heat resistant knobs
• Focusing Fixture: Lens barrel travels on nylon glides. Provided with heat resistant lock knob
