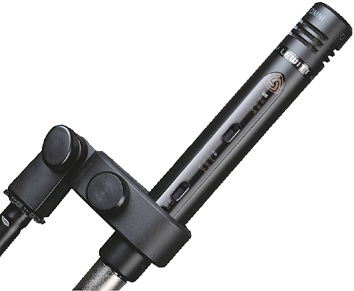

Lewitt LCT 340 Cardioid
Reference Class Condenser Pencil Microphone (Cardioid Capsule)

OUR PART #:  LCT340-CARDIOID

A 0.8" externally polarized condenser microphone that excels at capturing acoustic and percussion instruments, drums and vocals...
Learn More
Our Price: $399.00
List Price: $599.99
You save 33%!
Write the first review.
Lewitt LCT 340 Cardioid
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

A 0.8" externally polarized condenser microphone that excels at capturing acoustic and percussion instruments, drums and vocals, Lewitt's LCT 340 is highly suitable for sophisticated live and studio applications. It's equipped with 4-position low-cut filter and pre-attenuation slide switch, dual-color LED indicators and a convenient snap closure. It provides a dynamic range of 124 dB and stands out for its extremely low self-noise level of 13 dB. In addition, It has a rugged black die-cast full-metal body that ensures durability. Last but not least, its transformerless output makes this pro-mic resistant to electrical interference and a first-class pick for true sound enthusiasts.

Applications:

  • Overhead miking (drums, percussion)
  • Ensembles (choral/orchestral)
  • Acoustic instruments (piano, guitar, strings)
  • Wind instruments (brass/woodwinds)
  • Live or studio

Lewitt LCT 340 Cardioid Includes:

  • LCT 340 Condenser (cardioid capsule) microphone
  • DTP 40 Mts shock mount
  • LCT 40 Ws windshield
  • DTP 40 Lb leather bag

Lewitt LCT 340 Cardioid Features:

  • 0.8-inch small-diaphragm capsule with ultra-thin externally biased, gold-layered low-mass diaphragm for ultra-precise and neutral sound reproduction
  • Flat frequency response for natural, authentic sound
  • Interchangeable capsules for Cardioid and Omnidirectional (Omnidirectional [LCT 340 OC] capsule sold separately) pattern selection ensuring maximum flexibility and an undisturbed workflow
  • Wide dynamic range of 124 dB and low self-noise level of 15 dB for ear-catching realism and distortion-free sonic depth
  • 4-position switchable pre-attenuation pad (0 dB, 6 dB, 12 dB and 18 dB) for handling extremely high sound pressure levels and 4-position high-pass filter
  • Illuminated user interface for quick and easy handling even in dark environments
  • Rugged black die-cast full-metal body ensures long life
  • Hexagonal ruthenium-galvanized steel mesh grille to prevent wear and abuse
  • Immune to electromagnetic interference thanks to transformerless preamplifier circuitry
  • Corrosion-resistant gold-plated 3-pin XLR output connector

Lewitt LCT 340 Cardioid Specifications:

  • Acoustical operating principle: Externally polarized pressure & pressure gradient transducers
  • Transducer Ø: 0.8" (20.32mm)
  • Directional pattern (interchangeable capsule): Cardioid (Omnidirectional [LCT 340 OC] capsule available separately)
  • Frequency range: 20 Hz - 20 kHz
  • Sensitivity: 9 mV / Pa (-41 dBV)
  • Signal / noise ratio: 79 dB (A)
  • Equivalent noise level: 15 dB (A) (IEC 61672-1)
  • Dynamic range of mic. Amp.: 124 dB (A)
  • Max. SPL for 0,5 % THD: 139 dB, 0 dB pre-attenuation-->
    • 145 dB, 6 dB pre-attenuation
    • 151 dB, 12 dB pre-attenuation
    • 157 dB, 18 dB pre-attenuation
  • Pre-attenuation pad, switchable:
    • 0 dB
    • -6 dB
    • -12 dB
    • -18 dB
  • Low-cut filter:
    • Linear
    • Slope: 12 dB / octave at 40 Hz
    • Slope: 6 dB / octave at 150 Hz
    • Slope: 6 dB / octave at 300 Hz
  • Internal impedance: 150 ohms
  • Rated load impedance: 1,000 ohms
  • Supply voltage: 48 V + / - 4 V (IEC 61938)
  • Current consumption: 6.6 mA (IEC 61938)
  • Connector: Gold-plated 3-pin XLR
  • Dimensions (Ø x L): 0.94" x 6.3" (24 x 160mm)
  • Net weight: 7.05 oz. (200 g)

Notes:
-Microphones measured according to: IEC 60268-4
-Phantom power according to: IEC 61938
-Noise measurement according to: IEC 60268-1
