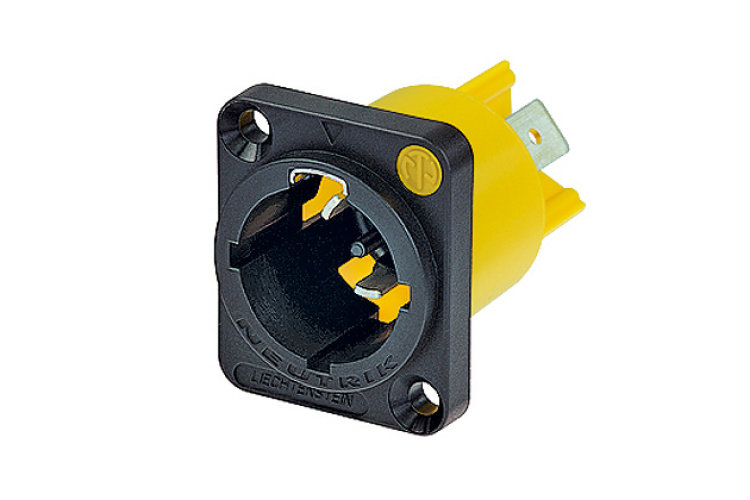

Neutrik NAC3MPX
PowerCON Male Power-In Chassis Receptacle to 1/4" Flat Tab Terminals

OUR PART #:  NAC3MPX

Neutrik's NAC3MPX powerCON TRUE1 is a locking 16 A (USA: 20 A) true mains connector.
Learn More
Our Price: $3.93
List Price: $5.59
Save up to 41% when you order by quantity!
  • Buy 25: $3.55 each.
  • Buy 50: $3.43 each.
  • Buy 100: $3.30 each.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NAC3MPX
Qty:
Similar Products

Neutrik's NAC3MPX powerCON TRUE1 is a locking 16 A (USA: 20 A) true mains connector.  It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Neutrik NAC3MPX powerCON TRUE1 Features:

  • Attention: Power-in chassis connector
  • True mains connector with breaking capacity (CBC)
  • Lockable 16 A (USA: 20 A) single phase connector
  • Easy and reliable twist lock system
  • Robust and reliable
  • CB and ENEC certified according to IEC 60320
  • UL recognized components

Neutrik NAC3MPX powerCON TRUE1 Specifications:

Electrical Specifications:

  • Contact resistance:  = 3 mOhm
  • Dielectric strength: 4 kVdc
  • Insulation resistance: > 100 GOhm (after damp heat test IEC 68-2-30)
  • Number of electrical contacts: 2 + PE
  • Rated current per contact: 16 A rms (USA: 20 A)
  • Rated voltage: 250 V ac

Mechanical Specifications:

  • Cable O.D.: 5 - 15 mm
  • Wiring: flat tabs for 1/4'' (FASTON® 6.3 x 0.8mm) or soldering
  • RW / Straight: no
  • Locking device: Quick Lock

Materials:

  • Contact plating: 2 µm Ag
  • Contacts: Bronze (CuNi1Si0.2)
  • Insert PA: 6.6 30 % GF
  • Shell PA: 6 30 % GR
  • Strain relief: POM
  • Labeling: no

Environmental Specifications:

  • Flammability: UL 94 V-0
  • Protection class: IP 20 (mated)
  • Safety requirements: cUL IEC 60320
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C - +80 °C
