Electro-Voice ZXA1-SUB
120V 700W Powered Subwoofer

OUR PART #:  ZXA1-SUB-120V

Extending the ZXA1's size-defying performance and sleek styling into the low-end realm...
Learn More
Our Price: $599.00
List Price: $762.00
You save 21%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Electro-Voice ZXA1-SUB
Qty:
In Stock

Similar Products

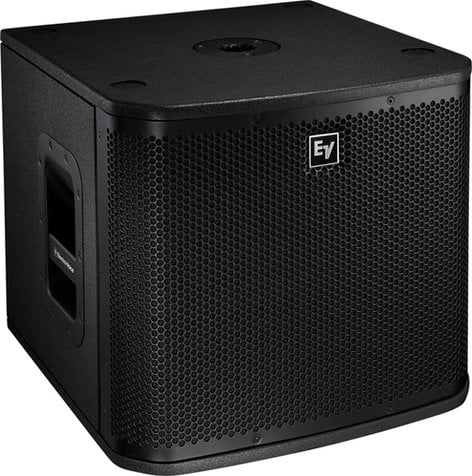

Extending the ZXA1's size-defying performance and sleek styling into the low-end realm, the ZXA1-Sub from Electro-Voice packs 700-W of self-powered punch into a low-profile wood enclosure. Match ZXA1 with ZXA1-Sub and hear just how big a small rig can sound, whether you want to add a tight thump to a DJ set or give the highs and mids some breathing room in a live performance.

Electro-Voice ZXA1-SUB Features:

  • Lightweight 700W Class-D amplifier: 126-dB maximum SPL
  • 12" high-output woofer
  • Dual XLR stereo inputs and outputs
  • DSP with low-end boost and polarity control
  • Pole mount for full-range systems
  • 9-ply/15-mm internally braced wood enclosure with textured paint
  • 46 pounds, with handle for easy carrying

Electro-Voice ZXA1-SUB Specifications:

  • Amplifier Power: 800 Watts (RMS)
  • Color: Black
  • Coverage (Nominal -6 dB): Omnidirectional
  • Input Connections: (2) XLR Stereo Input
  • Power Requirement: 90V-132v, 1.0 A, 50-60Hz
  • Speaker Type: Powered Subwoofer
  • Frequency Response (-3 dB): 53–93 Hz
  • Frequency Response (-10 dB): 44–118 Hz
  • Max. SPL/1m (calc): 126 dB Half Space
  • System Power Handling (Continuous/Program/Peak): 700 Watts
  • LF Transducer: (1) EVS-12S, 305mm (12") Woofer
  • Crossover Frequency: 100 Hz
  • Enclosure Material: 9-ply, 15mm Plywood, Internally Braced, with Textured Paint
  • Outdoor: No
  • Grill: 16GA Steel with Black Powdercoat
  • Height: 15.75" (400mm)
  • Width: 17.5" (444.5mm)
  • Depth: 18" (457.2 mm)
  • Net Weight: 46.08 lbs (20.9 kg)
  • Shipping Weight: 58.42 lbs (26.5 kg)
