Ultra Wideband Wireless HDMI/Component Extender

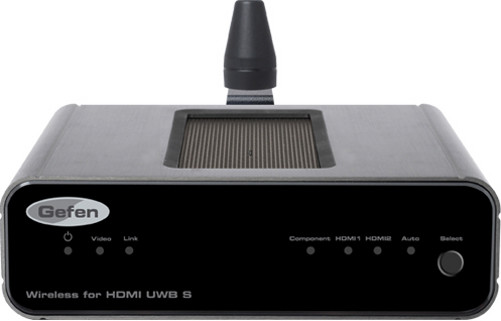

The Gefen EXT-WHDMI Wireless HDMI Extender is an ideal solution for sending up to three high-definition AV sources to any one location without the hassle of wires.
Learn More
Sale Price: $202.68
List Price: $999.00
You save 80%!
Be the first to review.
In Stock
Similar Products

The Gefen EXT-WHDMI Wireless HDMI Extender is an ideal solution for sending up to three high-definition AV sources to any one location without the hassle of wires.  The Gefen Wireless HDMI Extender is able to accomplish this by employing Ultra-Wideband (UWB) technology to send the large amounts of data required by the HDMI standard.  Up to a 30 foot line-of-sight distance (less if going through a wall to an adjacent room) is achievable with resolutions of up to 1080p@30 supported.

This is a great solution for scenarios where traditional cabling cannot be applied.  The plug-and-play installation makes it simpler than ever to extend HDMI to another room or to a ceiling projector in a matter of minutes, all without having to run cables and/or drill through walls and ceilings.

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It has a few minor scratches and may have been sold to a customer and returned. Please contact your sales representative for more information on this and other products.

The Gefen Wireless HDMI also doubles as a high-definition AV switcher.  There are three high-definition AV inputs (2 HDMI and 1 component) that are selectable by the transmitting unit.

If the wireless receiver is located in an remote location, the IR repeater feature will relay remote control commands from your location back to the source.  Once the IR blaster is properly placed, simply pointing your existing remote control at the receiver will send the remote commands back to your AV source device(s) for a truly seamless experience.

Gefen EXT-WHDMI Features:

  • Real-time, visually lossless HD video compression
  • Two HDMI inputs and one Component Video / Analog Audio input
  • Support for Dolby 5.1 Surround Sound
  • Fully HDMI and HDCP compliant
  • Supports HDMI 1.3 Lip Sync features for source devices
  • 2-ch Audio and PCM @ 32KHz, 44.1KHz, 48KHz supported as well as multichannel compressed 5.1 audio
  • IR Blaster and IR Receiver jacks
  • Input Selector Switch

Gefen EXT-WHDMI Specifications:

  • Up to 30 feet line-of-sight wireless operation with 65 Mbps throughput
  • Frequency Band Range: 3.1 - 4.8 GHz
  • Resolutions: 480i, 480p, 720p, 1080i and 1080p@24Hz, 25Hz, and 30Hz
  • HDMI 1.3 Compatible, HDMI 1.2 Compliant
  • Consumer Electronics Control (CEC) compliant
  • ADI JPEG 2000 visual lossless compression
  • Operating Temperature: 0° to 40°C
  • Operating Humidity: 10% to 90% relative humidity, non-condensing
  • Power Supply: 5V DC
  • Power Consumption: 12.5 Watts (max) each power supply
  • FCC Compliant Part 15
  • Dimensions (WxHxD): 6" x 2" x 4"
  • Shipping Weight: 6 lbs.
