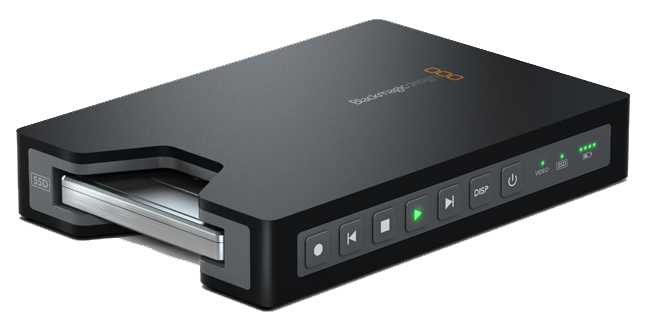

Blackmagic Design HyperDeck Shuttle 2
Portable SSD Video Recorder

OUR PART #:  HYPERDECK-SHUTTLE-2

Blackmagic Design's HyperDeck Shuttle dramatically improves the quality of video cameras and is the perfect portable field recorder for live production switchers.
Learn More
Our Price: $327.75
List Price: $345.00
You save 5%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Blackmagic Design HyperDeck Shuttle 2
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Blackmagic Design's HyperDeck Shuttle dramatically improves the quality of video cameras and is the perfect portable field recorder for live production switchers.  It's also the ultimate solution for digital signage. HyperDeck Shuttle gives you the quality and flexibility of compressed ProRes or DNxHD and uncompressed recording direct to common low cost SSDs in the smallest possible size.  HyperDeck Shuttle is compact, affordable and battery powered so it's perfect as a field recorder.  HyperDeck Shuttle bypasses your camera’s compression and records from SDI and HDMI direct into the highest quality video possible.  SSDs are cheap and fast, so you can edit directly from the SSD media itself.  Only SSDs eliminate time wasting file copying.

NOTE: The SDI signal is sent out via DIN connector, and NOT via BNC.  Please see the "Accessories" tab or the Recommended Accessories list above for the RD1-DINBF-1 DIN to BNC adapter cable should you need to send the signal via BNC.

Compressed or Uncompressed

Now you have the freedom to work in both compressed and uncompressed video depending on the needs of your project.  Uncompressed video will always produce the highest quality mathematically perfect results and is ideal when recording video for color correction, chroma keying and high end VFX work.  When you need longer recording duration or you're working with lots of video material, HyperDeck Shuttle 2 can be instantly changed over to use ProRes or DNxHD MXF compressed video files.  The popular Apple ProRes 422 (HQ) and Avid DNxHD files are SMPTE standard codecs that are used by thousands of broadcast and post production facilities worldwide as they maintain the highest 10-bit video quality with the advantage of smaller file sizes.

Go Anywhere, Record Everywhere

With a compact and incredibly sturdy design, HyperDeck Shuttle is machined out of a solid block of aircraft grade aluminum.  That means you get a design with the strength to go anywhere.  Take your HyperDeck Shuttle into the field, on set, to live events, or even on your extreme sport shoots.  With an internal battery, just recharge and go.  The possibilities are virtually endless.

Solid State Disk (SSD) Technology

Simply plug a 2.5" solid state disk into HyperDeck Shuttle and you get video recording with blazing fast speed, low power consumption and totally silent operation.  Now you can eliminate complicated and expensive disk arrays.  A single SSD can record either compressed or uncompressed video effortlessly.  Removable media like CF and SxS cards simply cannot match that kind of performance and require slow file copying to use.

Faster Cost Effective Workflows

HyperDeck Shuttle improves every step of your production workflow pipeline.  For quick on set client preview, connect HyperDeck Shuttle to a projector or TV via the HDMI or SDI outputs.  Mount an SSD drive to a computer for instant access to video files.

Familiar VTR Feel

HyperDeck Shuttle has standard deck style function buttons, as well as LEDs that indicate input signal lock, recording and battery status.  With the affordable HyperDeck Shuttle you won’t be tying up your expensive VTRs, but you'll still be in familiar operating territory.

Unparalleled File Compatibility

HyperDeck Shuttle captures universally compatible uncompressed QuickTime files or compressed Apple ProRes 422 (HQ) and Avid DNxHD MXF files.  Perfect with Media Composer, Final Cut Pro, Premiere and leading video applications like DaVinci Resolve.

Blackmagic Design HyperDeck Shuttle 2 Features:

  • Go anywhere, record everywhere
  • Solid State Disk (SSD) technology
  • Unparalleled file compatibility
  • Faster, more cost-effective workflows
  • Familiar VTR feel

Blackmagic Design HyperDeck Shuttle 2 Specifications:

Connections

  • SDI Video Input: 1x 10-bit SD/HD switchable via DIN1.0/2.3 connector
  • SDI Video Output: 1x 10-bit SD/HD switchable via DIN1.0/2.3 connector
  • HDMI Video Input: 1x HDMI 1.3 type A connector
  • HDMI Video Output: 1x HDMI 1.3 type A connector
  • SDI Audio Input: 16 channels embedded in SD and HD.Avid DNxHD is 2 channel
  • SDI Audio Output: 16 channles embedded in SD and HD.Avid DNxHD is 2 channel
  • HDMI Audio Input: 8 channels embedded in SD and HD
  • HDMI Audio Output: 2 channels embedded in SD and HD
  • SSD Interface: 1x 2.5" SATA 3Gb/s
  • Sync Input: None
  • Device Control: None
  • Recorder Control: 7 buttons for local control of HyperDeck Shuttle or use USB 2.0 high speed interface
  • Recorder Configuration: Use USB 2.0 high speed interface
  • Computer Interface: 1x Mini-B type USB 2.0 connector for initial setup, firmware updates, and HyperDeck Utility software control

Standards

  • SD Format Support:
    • 625/25 PAL and 525/29.97 NTSC
    • 480p60 and 576p50 via HDMI only
  • HD FormatSupport:
    • 720p50
    • 720p59.94
    • 720p60
    • 1080i50
    • 1080i59.94
    • 1080i60
    • 1080PsF23.98
    • 1080PsF24
    • 1080PsF25
    • 1080PsF29.97
    • 1080PsF30
    • 1080p23.98
    • 1080p24
    • 1080p25
    • 1080p29.97
    • 1080p30
  • SDI Compliance: SMPTE 259M, SMPTE 292M
  • SDI Metadata Support: HD RP188 and closed captioning
  • Video Sampling: 4:2:2
  • Audio Sampling: Television standard sample rate of24-bit/48kHz
  • Color Precision: 10-bit
  • Color Space: REC 601, REC 709
  • Multiple Rate Support: SDI and HDMI switches between 270 Mb/s standard definition SDI and 1.5 Gb/s HD-SDI
  • Codec Support: Uncompressed QuickTime, Avid DNxHD MXF

Extras

  • Displays: None
  • Battery: Rechargeable built-in lithium-ion polymer battery
  • Power Supply: +12V universal power supply included with international socket adapters for all countries. Connection supports 12V to 18V
  • Product Warranty: 12-month limited manufacturer's warranty
