Liberty AV Solutions 22-1P-CMP-EZ-BLK
1000 ft Reel of Plenum Qwikstrip 22/1P Balanced Audio Cable in Black

OUR PART #:  22-1P-CMP-EZ-BLK

The Liberty AV Solutions 22-1P-CMP-EZ-BLK is a 1 pair 22 AWG stranded, twisted, and shielded cable NEC type CMP and CEC type CMP FT6.
Learn More
Our Price: $333.00
List Price: $370.00
You save 10%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Liberty AV Solutions 22-1P-CMP-EZ-BLK
Qty:
In Stock

Similar Products

The Liberty AV Solutions 22-1P-CMP-EZ-BLK is a 1 pair 22 AWG stranded, twisted, and shielded cable NEC type CMP and CEC type CMP FT6. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800.

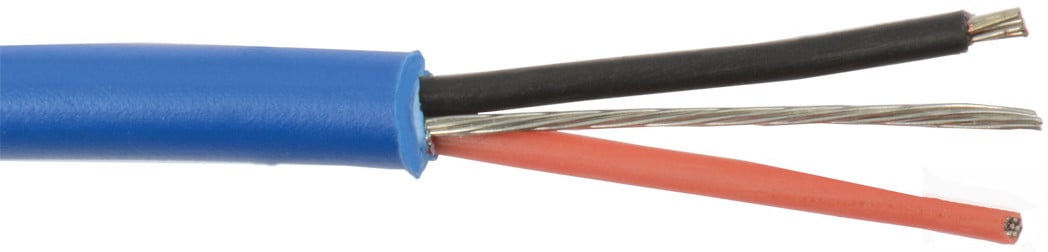

NOTE: Shown above in blue, comes in black.

Liberty AV Solutions 22-1P-CMP-EZ-BLK Features:

  • 7-Strand Annealed Tinned Copper Conductors
  • Cellular FEP Dielectric Insulation
  • Tightly Twisted and Shielded
  • Semi-Pressure Extruded Plenum Alloy Jacket
  • Foil Shield bonded to inside of jacket for EZ-Stripping
  • NEC CMP, CEC CMP FT6, RoHS Compliant

Liberty AV Solutions 22-1P-CMP-EZ-BLK Applications:

  • Line Level, Microphone level Audio
  • Balanced and unbalanced Audio formats
  • Infrared (IR), RS-232C signaling
  • Instrumentation and Control

Liberty AV Solutions 22-1P-CMP-EZ-BLK Specifications:

  • Conductor:
    • 22 AWG
    • 7-strand tinned annealed copper conductors
    • Diameter: 0.030" (0.76 mm)
  • Electrical:
    • DC resistance: 16.88 Ohms / 1000 ft (55.36 Ohms/km)
    • Mutual capacitance: 15.5 pF/ft (50.84 pF/M)
    • Impedance: 65 Ohms
    • Velocity of Propagation: 76%
    • Voltage rating: 300V
    • Maximum current: 2.8A@25°C
  • Insulation:
    • Foam fluorinated ethylene propylene
    • Wall thickness: 0.010" (0.25 mm)
    • Diameter: 0.050" (1.27 mm)
  • Regulatory:
    • NEC: CMP 75°C
    • CEC: CMP FT6 60°C
    • EU RoHS 2002/95/EC Compliant
  • Color Code: Black, Red
  • Packages:
    • Reel: 1000 ft (305 M)
    • Weight: 14 lbs/1000 ft (21 kg/km)
  • Assembly:
    • 2 conductors twisted
    • Pair lay length: 2.0" (51 mm)
    • 6.0 twists per foot (19.6 twists per meter)
  • Installation:
    • Pull Tension: 14 lbs (62 N)
    • Bend radius: 1.31" (34 mm) unloaded
      Bend radius: 2.62" (68 mm) loaded
    • Plenum cable should be conditioned at room temperature for 24 hours prior to installation and never installed below 32°F (0°C) ambient temperature
  • Construct: N/A
  • Applications:
    • Plenum broadcast quality line level balanced audio
    • Plenum low voltage control and RS-232C signaling
  • Shield: 100% aluminum/polyester tape foil in 24 AWG 7-strand tinned copper drain
  • Performance: Assuming 600 ohm source impedance: Line level balanced audio 450 feet
  • Jacket:
    • Pressure extruded plenum rated polyvinyl chloride
    • Colors: Black, Blue, Brown, Green, Cool Gray, Orange, Red, Violet, Tan, White, Yellow
    • Wall thickness: 0.015" (0.38 mm)
    • Diameter: 0.131" (3.33 mm)
  • Final Outside Diameter: 0.131"
