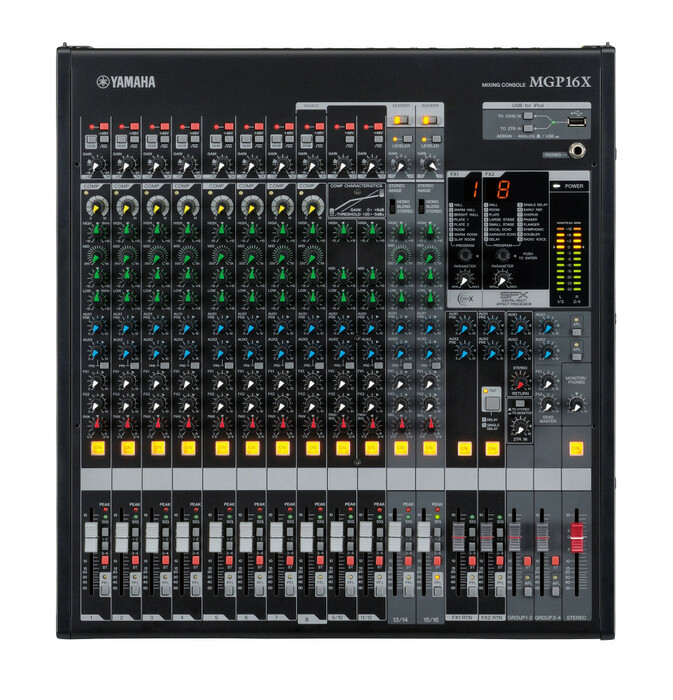

Yamaha MGP16X
16-Channel Compact Analog Mixer

OUR PART #  MGP16X-CA

Our Price: $699.01
List Price: $999.00
You save 30%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The MGP16X is not just for live bands and DJ's, the MG Series mixing consoles can easily adapt to a truly impressive range of applications from portable PA to fixed installation. Now with the newly added digital functions and superior sound of the MGP, the possibilities are endless.

From the preamps, EQ and effects to the Hybrid Channel functions and iPod/iPhone connectivity—every aspect, every feature, every sound, establishes the MGP as a premium mixing console in a class of its own.

Features:

  • 10 Mic Inputs with 48V Phantom Power and HPF per Channel
  • 16 Line Inputs (8 mono and 4 stereo)
  • Additional 2TR Inputs Provided to Accept the Output from Analog Devices oriPod/iPhone
  • 2 AUX Sends + 2 FX Sends
  • 4 GROUP Buses + ST Bus

Specifications:

Mixing capability

  • Mixing channels  16 Line Inputs (8 mono and 4 stereo)
  • GROUP  4 GROUP Buses + ST Bus
  • AUX  2 AUX Sends + 2 FX Sends
  • Input channel functions:
    • Compressor CH1-8
    • HPF(100Hz 12dB/oct)
    • CH EQ (MONO) ±15dB(Max.):High 8kHz shelving/ Mid 250Hz-5kHz peaking(CH1-8,13-16)/ Low 125Hz shelving, CH EQ(STEREO) ±15dB(Max.):High 8kHz shelving/ Mid 2.5kHz peaking(CH9-12)/ Low 125Hz shelving
  • On-board processors:
    • FX1:REV-X(8 PROGRAM, PARAMETER control)
    • FX2:SPX (16 PROGRAM, PARAMETER control)

I/O

  • Mic inputs:  MIC: 10
  • Phantom power:  48V phantom power per channel
  • Line inputs:
    • LINE: 8mono+4stereo
    • CH INSERT: 8
    • RETURN: 1stereo
    • 2TR IN: 1 stereo
  • Digital I/O: USB Audio USB IN/OUT: iPod, iPhone exclusive

General

  • Total harmonic distortion  0.02% (20Hz-20kHz@ +14dBu)
  • Frequency response  +0.5/-1.0dB 20Hz - 20kHz, refer to the nominaloutput level @1kHz
  • Hum & noise level  Equivalent input noise -128 dBu (20Hz–20 kHz, Rs= 150Ohms, Input Gain = Maximum)
  • Residual output noise  -102 dBu (20Hz–20 kHz,Rs= 150Ohms, Input Gain =Maximum)
  • Crosstalk  -74dB @ 1kHz
  • Power requirements  100-240V 50Hz/60Hz
  • Power consumption  55W max
  • Dimensions  17.6"(W) x 5.63"(H) x 19.49"(D)
  • Net weight: 19.84 Lbs

Yamaha MGP16X
16-Channel Compact Analog Mixer

OUR PART #  MGP16X-CA

Product Information:

The MGP16X is not just for live bands and DJ's, the MG Series mixing consoles can easily adapt to a truly impressive range of applications from portable PA to fixed installation. Now with the newly added digital functions and superior sound of the MGP, the possibilities are endless.

From the preamps, EQ and effects to the Hybrid Channel functions and iPod/iPhone connectivity—every aspect, every feature, every sound, establishes the MGP as a premium mixing console in a class of its own.

Features:

  • 10 Mic Inputs with 48V Phantom Power and HPF per Channel
  • 16 Line Inputs (8 mono and 4 stereo)
  • Additional 2TR Inputs Provided to Accept the Output from Analog Devices oriPod/iPhone
  • 2 AUX Sends + 2 FX Sends
  • 4 GROUP Buses + ST Bus

Specifications:

Mixing capability

  • Mixing channels  16 Line Inputs (8 mono and 4 stereo)
  • GROUP  4 GROUP Buses + ST Bus
  • AUX  2 AUX Sends + 2 FX Sends
  • Input channel functions:
    • Compressor CH1-8
    • HPF(100Hz 12dB/oct)
    • CH EQ (MONO) ±15dB(Max.):High 8kHz shelving/ Mid 250Hz-5kHz peaking(CH1-8,13-16)/ Low 125Hz shelving, CH EQ(STEREO) ±15dB(Max.):High 8kHz shelving/ Mid 2.5kHz peaking(CH9-12)/ Low 125Hz shelving
  • On-board processors:
    • FX1:REV-X(8 PROGRAM, PARAMETER control)
    • FX2:SPX (16 PROGRAM, PARAMETER control)

I/O

  • Mic inputs:  MIC: 10
  • Phantom power:  48V phantom power per channel
  • Line inputs:
    • LINE: 8mono+4stereo
    • CH INSERT: 8
    • RETURN: 1stereo
    • 2TR IN: 1 stereo
  • Digital I/O: USB Audio USB IN/OUT: iPod, iPhone exclusive

General

  • Total harmonic distortion  0.02% (20Hz-20kHz@ +14dBu)
  • Frequency response  +0.5/-1.0dB 20Hz - 20kHz, refer to the nominaloutput level @1kHz
  • Hum & noise level  Equivalent input noise -128 dBu (20Hz–20 kHz, Rs= 150Ohms, Input Gain = Maximum)
  • Residual output noise  -102 dBu (20Hz–20 kHz,Rs= 150Ohms, Input Gain =Maximum)
  • Crosstalk  -74dB @ 1kHz
  • Power requirements  100-240V 50Hz/60Hz
  • Power consumption  55W max
  • Dimensions  17.6"(W) x 5.63"(H) x 19.49"(D)
  • Net weight: 19.84 Lbs
