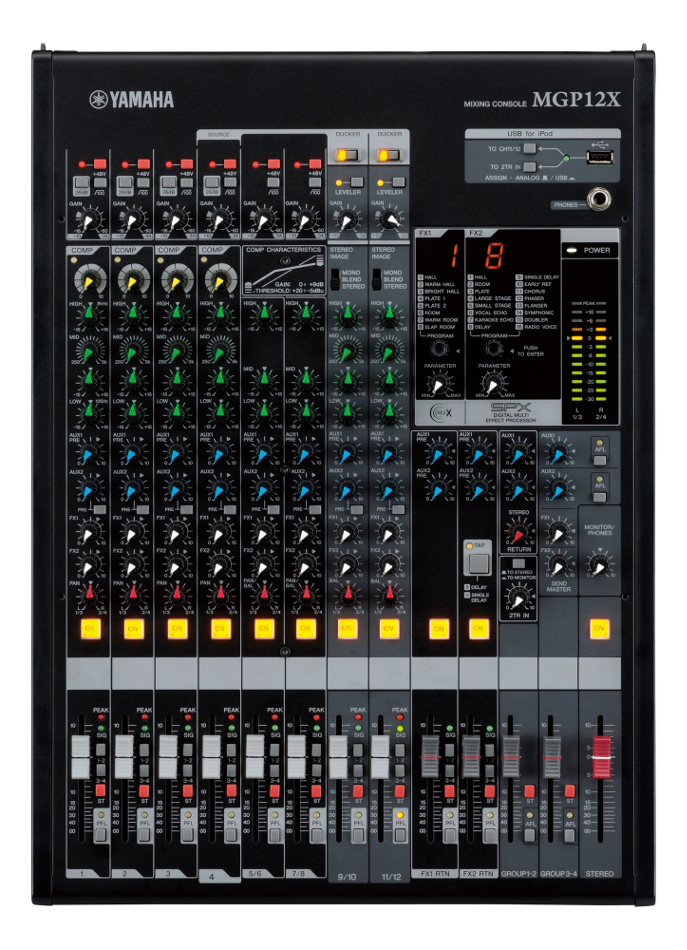

Yamaha MGP12X
12-Channel Compact Analog Mixing Console


Our Price: $577.89
List Price: $829.00
You save 30%! (Low Price Guarantee)
In Stock

Not just for DJ's and live bands, Yamaha's MG Series mixing consoles can easily adapt to a wide array of applications from portable PA to fixed installation and more. With digital functions and superior sound of the MGP, the possibilities are practically endless. From the preamps, EQ and effects on to the Hybrid Channel functions, as well as iPod/iPhone connectivity—every aspect, every feature, every sound, establishes the MGP as a premium mixing console in a class all its own.

Yamaha MGP12X Includes:

  • MGP12X unit
  • AC power cord
  • 13RU rack mount kit
  • User manual

Yamaha MGP12X Features:

  • 6 Mic Inputs with 48V Phantom Power and HPF per Channel
  • 12 Line Inputs (4 mono and 4 stereo)
  • Additional 2TR Inputs Provided to Accept the Output from Analog Devices or iPod/iPhone
  • 2 AUX Sends + 2 FX Sends
  • 4 GROUP Buses + ST Bus

Yamaha MGP12X Specifications:

  • Mixing Capability:
    • Mixing channels:  12 Line Inputs (4 mono and 4 stereo)
    • GROUP:  4 GROUP Buses + ST Bus
    • AUX:  2 AUX Sends + 2 FX Sends
    • Input channel functions:  Compressor CH1-4, HPF (100Hz 12dB/oct), CHEQ (MONO) +/- 15dB (Max.): High 8kHz shelving/Mid 250Hz-5kHz peaking (CH1-4, 9-12)/Low 125Hz shelving, CH EQ (STEREO) +/- 15dB (Max.): High 8kHz shelving/ Mid 2.5kHz peaking (CH5-8)/ Low 125Hz shelving
    • On-board processors:  FX1: REV-X (8 PROGRAM, PARAMETER control), FX2: SPX (16 PROGRAM, PARAMETER control)
  • I/O:
    • Mic inputs: MIC:6 (100Hz 12dB/oct)
    • Phantom power: 48V phantom power per channel
    • Line inputs: LINE: 4mono + 4 stereo, CH INSERT IN: 4, RETURN: 1 stereo, 2TR IN: 1 stereo
    • Digital I/O: USB Audio USB IN/OUT: iPod, iPhone exclusive
  • General:
    • Total harmonic distortion: 0.02% (20Hz-20kHz@ +14dBu)
    • Frequency response: +0.5/-1.0dB 20Hz - 20kHz, refer to the nominal output level @ 1 kHz
    • Hum & noise level  Equivalent input noise: -128 dBu (20Hz–20kHz, Rs = 150Ohms , Input Gain = Maximum)
    • Residual output noise: -102 dBu (20Hz–20 kHz, Rs = 150Ohms, Input Gain = Maximum)
    • Crosstalk: -74dB @ 1kHz
    • Power requirements: 100-240V 50Hz/60Hz
    • Power consumption: 45W max
    • Physical:
      • Dimensions: 13.8" W x 5.6" H x 19.5" D (348 x 143 x 495mm)
      • Net weight: 16.5 lbs (7.5 kg)
