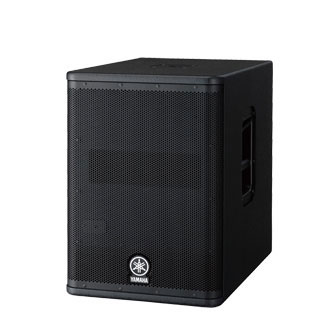

Yamaha DXS12
12" Active Subwoofer


Our Price: $699.99
List Price: $1,049.00
You save 33%!
Write the first review.
Yamaha DXS12
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

The DXS12 is an extremely compact and powerful subwoofer equipped with a high-efficiency 950W Class-D amplifier and a 12” high -output woofer housed in an acoustically optimized band-pass enclosure .Try out our powerful D-XSUB low frequency processing for low-end you would never expect from a compact 12” subwoofer.

The DXS Series has an all-new band-pass design that produces extremely high SPL by drastically reducing the distortion. The DXS features a customized, high-power handling woofer with superior damping, for a clean, accurate delivery of the massive power produced by a 950W Class-D high-efficiency amplifier. Yamaha’s formidable DSP technologies are perfectly utilized for precise tuning of filters, flexible control of the LPF setting and low-frequency response, as well as high-grade protection functions that ensure all components perform to the full limit of their potential. Powerful D-XSUB processing allows you to choose from either NORMAL, BOOST or XTENDED LF settings. NORMAL mode gives you the ideally balanced low-frequency response, while BOOST mode provides a more tight and focused bass. XTENDED LF mode drops the low end frequencies down-even further for thunderous bottom end that delivers. Take your full-range system to the next level with the power and versatility of DXS Series active subwoofers.

Yamaha DXS12 Specifications:

  • Speaker type:  12" powered subwoofer, Band-pass type
  • Frequency Range (-10dB):  47Hz - 160Hz
  • Components  LF  Diameter:  12" cone, Voice Coil:2.5"
  • Output power  Dynamic:  950W / Continuous: 600W
  • Maximum output level (1m; on axis):  131dB SPL
  • I/O connectors  INPUT:  XLR-3-31 x2 , THRU: XLR3-32 x 2 (Parallel with INPUT)
  • Processors:  D-XSUB, BOOST, XTENDED-LF, OFF
  • Power requirements:  100V - 240V, 50Hz/60Hz
  • Power consumption:  120W
  • Pole socket:  35mm (Top x1)
  • Dimensions:
    • Width:  15 5/8" (397mm)
    • Height:  22 1/8" (563mm)
    • Depth:  23 3/8" (594mm)
  • Net weight  72.8lbs (33.0kg)
  • Material:  Wood (Paint, Black)
