Yamaha DXR12 12" 2-Way 1100 W Active Loudspeaker with DSP

OUR PART #: DXR12-CA

Copied to clipboard

An extremely high-power loudspeaker, Yamaha's DXR12 is capable of producing a maximum SPL (sound pressure level) of 132 dB with an impressive 1100 W of onboard power. ...Read more

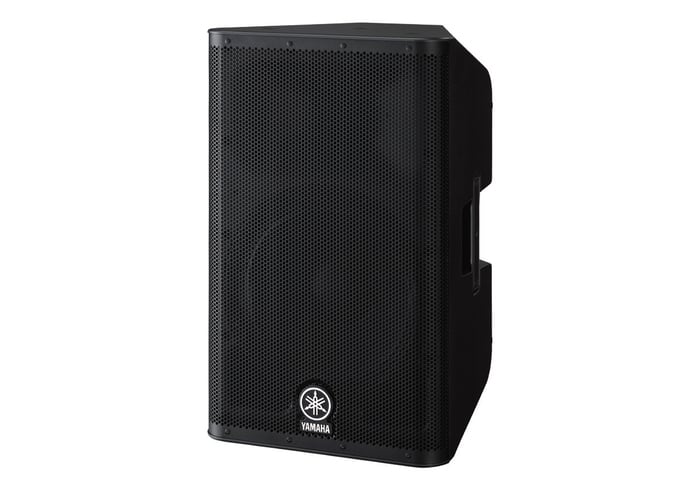

Yamaha DXR12 12" 2-Way 1100 W Active Loudspeaker With DSP Image 1
Yamaha DXR12 12" 2-Way 1100 W Active Loudspeaker With DSP
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Replacement Parts

Product Overview

An extremely high-power loudspeaker, Yamaha's DXR12 is capable of producing a maximum SPL (sound pressure level) of 132 dB with an impressive 1100 W of onboard power. It's the ideal solution for live sound applications that demand wide bandwidth combined with extremely high resolution sound.

Features

  • Ultra-precise 48-Bit DSP processing for high-definition sound
  • Intelligent, dynamic control for consistent clarity at any output level
  • Extensive DSP protection functions for maximum output
  • High-efficiency 1100 W Class-D amplifiers
  • Durable, compact ABS enclosures
  • Dual-angle pole-mount socket
  • Rigging points for standard eye-bolts and optional U-brackets

Specifications

  • 2-way, Bi-amp powered speaker, Bass-reflex type
  • Frequency Range (-10 dB): 52 Hz - 20 kHz
  • Nominal coverage:
    • H: 90°
    • V: 60°
  • Components:
    • Low-frequency (LF): 12" cone, 2.5" voice coil, Ferrite Magnet
    • High-frequency (HF): 1.4" compression driver, 1" throat, Ferrite Magnet
  • Crossover: FIR-X tuning™ (linear phase FIR filter)
  • Output power: Dynamic: 1100 W (LF: 950 W, HF: 150 W) / Continuous: 700 W (LF: 600 W, HF: 100 W)
  • Maximum output level (1m; on axis): 132 dB SPL
  • I/O connectors: INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCAPIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1), LINK OUT: XLR x 1
  • Processors: D-CONTOUR: FOH/MAIN, MONITOR, OFF
  • Power requirements: 100 V - 240 V, 50 Hz/60 Hz
  • Power consumption: 110 W
  • Flying and mounting hardware: Top x2, Rear x1 (Fits for M10 x 18mm eyebolts)
  • Pole socket: 35mm with 2-way features (0° or 7°)
  • Dimensions (W×H×D) 14.2" x 23.6" x 13.7" (362 x 601 x 350mm)
  • Net Weight 42.5 lbs. (19.3 kg)
  • Optional Accessories (sold separately): UB-DXR12
  • Others: Material: ABS (Matte Finish, Black)
