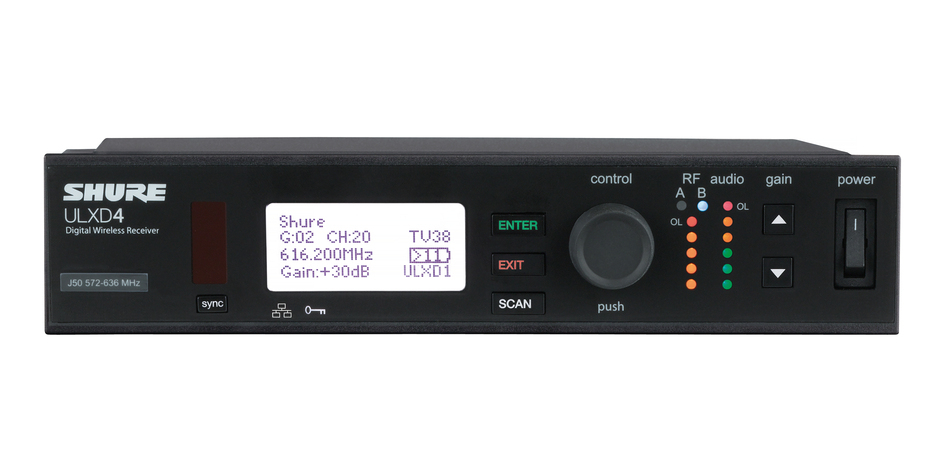

Shure ULXD4
Digital Wireless Receiver G50 Band

OUR PART #:  ULXD4-G50

The Shure ULXD4 is a half-rack, networkable wireless receiver for use with ULX-D Digital Wireless Systems.
Learn More
Our Price: $875.00
List Price: $1,094.00
You save 20%!
Write the first review.
Shure ULXD4
Qty:
In Stock

Related Products

The Shure ULXD4 is a half-rack, networkable wireless receiver for use with ULX-D Digital Wireless Systems.

With an expansive set of professional features, including 24-bit / 48 kHz digital audio quality, efficient and intelligent RF performance, and AES 256-bit encryption, ULX Digital offers uncompromising wireless tailored for professional sound reinforcement.

Shure ULXD4 Features:

  • Predictive switching diversity
  • Intelligent scanning automatically finds and deploys the cleanest frequencies to transmitters over IR sync
  • Interference detection and alerts provided on both the receiver and Wireless Workbench® 6
  • Front panel gain adjustment buttons provide up to 60 dB additional gain
  • AES 256-bit encryption-enabled for applications where secure transmission is needed
  • Ethernet networking provides streamlined setup across multiple receivers,Wireless Workbench® 6 integration, and AMX/Crestron control
  • Support for frequency coordination with the Axient™ Spectrum Manager
  • Rugged metal chassis
  • Intuitive front panel LCD menu and controls with lockout feature
  • Upgraded LCD with adjustable contrast and brightness
  • Audio and RF LED meters with peak indicator
  • Remoteable ½ wave antennas
  • Furnished rack hardware

Shure ULXD4 Specifications:

  • RF Input:
    • Spurious Rejection: >80 dB, typical
    • Connector Type: BNC
    • Impedance: 50 Ohms
    • Bias Voltage: 12–13 V DC, 170 mA maximum, per antenna
  • Audio Output:
    • Gain Adjustment Range: -18 to +42 dB in 1 dB steps (plus Mute setting)
    • Configuration:
      • 1/4" (6.35 mm): Impedance balanced (Tip=audio, Ring=no audio, Sleeve=ground)
      • XLR: Balanced (1=ground, 2=audio +, 3= audio -)
    • Impedance:
      • 1/4" (6.35 mm): 100 Ohms (50 Ohms Unbalanced)
      • XLR: 100 Ohms
    • Full Scale Output:
      • 1/4" (6.35 mm): +12 dBV
      • XLR: LINE setting= +18 dBV, MIC setting= -12 dBV
      • Mic / Line Switch: 30 dB pad
    • Phantom Power Protection:
      • 1/4" (6.35 mm): Yes
      • XLR: Yes
  • Networking:
    • Power Over Ethernet (PoE): No, protected
    • Network Interface: Single Port Ethernet 10 / 100 Mbps
    • Network Addressing Capability: DHCP or Manual IP address
    • Maximum Cable Length: 328 ft (100 m)
  • Additional Specs:
    • Audio Frequency Response: 20 Hz–20 kHz, flat
    • Dynamic Range: 120 dB, extended
    • Tuning Range: Up to 64 MHz
    • Dimensions (HxWxD): 7.75" x 6.75" x 1.65" (197 x 171 x 42 mm)
    • Weight: 2.0 lbs (913 g), without antennas
    • Housing: Galvanized steel

Consumer Alert

This particular wireless microphone device operates in portions of the 617-652 MHz or 663-698 MHz frequencies. Beginning in 2017, these frequencies are being transitioned by the Federal Communications Commission (FCC) to the 600 MHz service to meet increasing demand for wireless broadband services. Users of this device must cease operating on these frequencies no later than July 13, 2020. In addition, users of this device may be required to cease operations earlier than that date if their operations could cause harmful interference to a 600 MHz service licensee’s wireless operations on these frequencies. For more information, visit the FCC’s wireless microphone website at www.fcc.gov/wireless-microphones-guide or call the FCC at 1- 888-CALL-FCC (TTY: 1-888-TELL-FCC).
