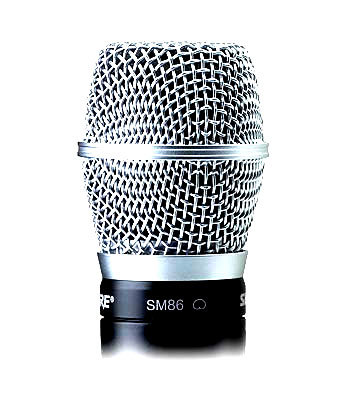

Shure ULXD2/SM86-G50
Handheld Transmitter, SM86, G50 Band

OUR PART #  ULXD2/SM86-G50

Our Price: $554.00
List Price: $693.00
You save 20%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories
The Shure ULXD2 is a handheld wireless transmitter compatible with ULX-D™ Digital Wireless Systems. With a rugged yet lightweight aluminum body and integrated antenna, the ULXD2 delivers uncompromising audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound reinforcement applications.

Shure ULXD2/SM86-G50 Features:

  • 30 Hz–20 kHz range with flat frequency response (actual response ismicrophone dependent)
  • Interchangeable Shure microphone cartridges, including the legendary SM58®
  • AES 256-bit encryption for applications for which secure transmission isneeded
  • Proprietary Shure Gain Ranging optimizes the system’s dynamic range forany input source, eliminating the need for transmitter gain adjustments
  • Shure Lithium-Ion rechargeable battery pack provides over 12 hours ofbattery life, precision metering in hours and minutes with 5 segment battery fuel gauge, and zero memory effect
  • External charging contacts for docked charging (with the SBC200 DualDocking Charger)
  • Backlit LCD with easy to navigate menu and controls
  • Rugged metal construction
  • Frequency and power lockout

Shure ULXD2/SM86-G50 Specifications:

AUDIO INPUT

  • Configuration
    Unbalanced
  • Maximum Input Level (1 kHz at 1% THD)
    145 dB SPL (SM58),typical
    Note: Dependent on microphone type
  • Preamplifier Equivalent Input Noise (EIN), System Gain Setting =+20
    120 dBV, A-weighted, typical

RF OUTPUT

  • Antenna Type
    Integrated Single Band Helical
  • Occupied Bandwidth
    <200 kHz
  • Modulation Type
    Shure Proprietary Digital
  • Power
    1 mW, 10 mW, 20 mW

ADDITIONAL SPECS

  • Audio Frequency Response
    30 Hz to 20 kHz (±1 dB), flat
    Note: Dependent on microphone type
  • Dynamic Range
    >120 dB
  • Operating Range
    300 ft (100 m)
  • Gain Offset Range
    0 to 21 dB (in 3 dB steps)
  • Battery Type
    Shure SB900 Rechargeable Li-Ion or AA batteries
  • Battery Runtime @ 10 mW
    Shure SB900: >12 hours
    Alkaline: 11 hours
  • Dimensions
    10.1" x 2.0" (256 mm x 51 mm), L x Dia.
  • Weight
    12.0 oz (340 g), without batteries
  • Housing
    Machined aluminum
