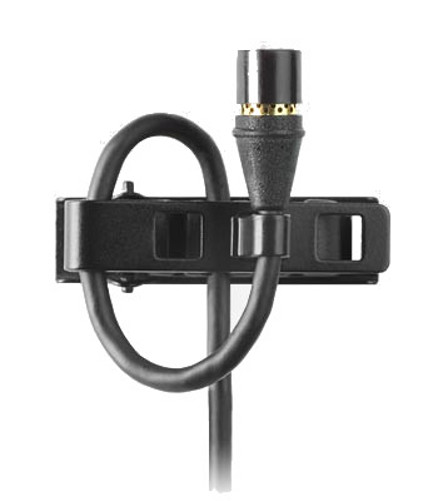

Shure MX150B/O-TQG
TQG Omnidirectional Condenser Submini Lavalier Microphone, in Black

OUR PART #  MX150B/O-TQG

Our Price: $218.00
List Price: $283.00
You save 23%! (Low Price Guarantee)
In Stock

Recommended Accessories

The Shure Microflex® MX150 is a professional electret condenser microphone ideal for applications requiring low-profile placement.

Fully compatible with all Shure wireless systems, the discreet MX150 offers uncompromising sound quality and high reliability for television broadcasting, corporate lectures, A / V teleconferencing, houses of worship, and sound reinforcement.

Features:

  • Available in cardioid or omnidirectional polar patterns and TQG (for use in Shure bodypacks) or wired XLR variations
  • CommShield® Technology guards against interference from cellular RF devices and digital bodypack transmitters
  • Matte black, sleek design for inconspicuous placement
  • Multi-position tie clip allows for a variety of placement options and features an integrated cable management system for convenient cable dress with minimal handling noise
  • Kevlar®-reinforced soft-flex cable design further reduces handling noise while providing superior flexibility for routing and placement
  • User-changeable equalization caps for response shaping (omnidirectional only)
  • Snap-fit, concise windscreen provides protection from plosives and wind noise with minimal visibility
  • Legendary Shure quality, ruggedness, and reliability

Specifications:

  • Transducer Type
    Electret condenser
  • Polar Pattern
    MX150/O: Omnidirectional
  • Frequency Response
    20 to 20,000 Hz
  • Output Impedance
    MX150/O: TQG: N/A, XLR: 165.0O
  • Sensitivity (open circuit voltage, @ 1 kHz, typical)
    TQG: -46.5 dBV/Pa (4.5 mV)
  • Maximum SPL (1 kHz at 1% THD)
    TQG: 143.0 dB SPL
  • Signal-To-Noise Ratio
    TQG: 60.0 dB
  • Dynamic Range @ 1 kHz
    TQG: 109.0 dB SPL
  • Self-Noise (equivalent SPL, A-weighted, typical)
    TQG: 34.0 dB
  • Operating Temperature Range
    -18°C (0°F) to 57°C (135°F)
  • Polarity
    TQG: Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
  • Power Requirements
    TQG: 5 V DC (0.04 – 0.18 mA)
  • Weight
    TQG: 21 g (0.7 oz.)
