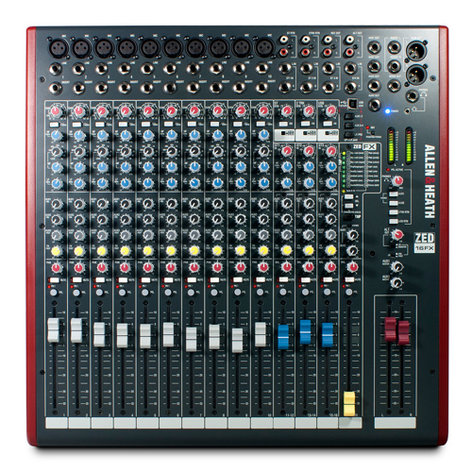

Allen & Heath ZED-16FX
Mixing Console with USB Port

OUR PART #:  ZED-16FX

The Allen & Heath ZED-16FX is ideal for groups who need to travel light.
Learn More
Our Price: $699.00
List Price: $799.00
You save 13%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Allen & Heath ZED-16FX
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Allen & Heath ZED-16FX is ideal for groups who need to travel light. It gives musicians, venues and hire companies access to 10 full mono channels, 3 stereo channels and a high quality FX unit in a compact, rack mountable format. Configurable USB audio in/out makes it easy to capture stereo recordings.

ZED-16FX features a responsive 3-band, swept mid frequency EQ design which utilises MusiQ – with optimised slope (or Q factor) for equalising individual instruments. Based on the proven pre-amps from the hugely successful PA series, ZED-16FX has DuoPre pre-amps, which use a two stage design, with carefully controlled amounts of gain in each stage. When amplifying the signal from the XLR input, the gain range is huge - 69dB of range to be exact - and is very evenly distributed around the gain control, meaning better control of signal level. Most of the gain comes from the first stage, so unwanted noise is kept to a minimum. Line level signals are simply plugged into the second stage of the pre-amp by using the line input jack socket, which has the great advantage of less noise when using the line input and also matching to a higher input impedance.

ZED-16FX has an essential selection of 16 time-delay effects, designed for small groups who don’t want to carry around an effects unit with their gear but who still want great quality FX at their gigs and on their recordings. Our DSP engineers worked hard, crafting and refining beautiful reverb algorithms to enhance every performance. These effects are available nowhere else at this price point – this quality and integration is only available from the ZED-FX. ZED effects are easily controlled using 3 buttons with 9 display LEDs. For example, the ideal delay time can be quickly tapped-in, or the perfect amount of reverb on the lead vocal can be dialled-in. There is one-stop navigation and editing – in fact, it’s just as easy as using effects pedals. To alter effects parameters, the TAP button is held down and the up/down buttons pressed to adjust the specific parameter for that effect, for example, the decay length on PLATE, or the depth on CHORUS.

Allen & Heath ZED-16FXFeatures:

  • 10 mono mic/line  inputs
  • 3 stereo channels with 2-band EQ
  • 16 internal time-delay effects
  • Neutrik mic XLRs
  • Neutrik 1/4" jacks
  • Channel insert
  • Super wide gain DuoPre™ mic line input
  • 3 band EQ with MusiQ
  • 4 auxes
  • Illuminated mute
  • Sound image pan
  • Illuminated PFL & peak warning indicator
  • ALPS 100mm faders
  • Stereo returns & playback
  • All inputs with level control
  • 12 bar meters
  • Mono/stereo function on auxes 1&2
  • Monitor output section
  • Alt stereo output source
  • Configurable USB stereo audio in/out
  • Cakewalk SONAR X1 LE bundled with mixer
  • Rack ears available

Allen & Heath ZED-16FX Specifications:

Input

  • Mono channel (XLR) Input: +6 to –63dBu for nominal (+17dBu in max)
  • Mono channel Line Input (Jack socket): +10 to –26dBu (+30dBu maximum)
  • Insert point (TRS Jack socket): 0dBu nominal +21dBu maximum
  • Stereo Input (Jack sockets): 0dBu nominal (control =Off to +10dB)
  • Stereo input (phono sockets): 0dBu nominal (control =Off to +10dB)

Output

  • L, R & Mono Outputs (L&R XLR, Mono Jack): 0dBu nominal. +21dBu maximum.
  • Aux Outputs (Jack sockets): 0dBu nominal. +21dBumaximum.
  • Alt Outputs (phono sockets): 0dBu nominal. +21dBumaximum.
  • Rec Outputs (phono sockets): 0dBu nominal. +21dBu maximum.

Frequency Response

  • Mic in to Mix L/R Out, 30dB gain: +0.5/-1dB 20Hz to20kHz.
  • Line in to Mix L/R out 0dB gain: +0.5/-1dB 10Hz to30kHz
  • Stereo in to Mix L/R out: +0.5/-1dB 10Hz to 30kHz

THD+n

  • Mic in to Mix L/R Out, 0dB gain 1kHz +10dBu out0.004%
  • Mic in to Mix L/R Out, 30dB gain 1kHz 0.014%
  • Line in to Mix L/R out 0dB gain 0dBu 1kHz 0.005%
  • Stereo in to Mix L/R out 0dB gain +10dBu 1kHz 0.003%

Headroom

  • Analogue Headroom from nominal (0Vu): 21dB
  • USB in & out headroom from nominal (0Vu): 14dB

USB Audio CODEC (Coder/Decoder)

  • USB Audio In/Out USB 1.1 compliant 16bit
  • Sample Rate 32, 44.1, or 48kHz

Noise

  • Mic Pre EIN @ max gain 150R input Z 22-22kHz: -127dBu
  • Mix L/R out, L/R faders = 0, 22-22kHz ZED-16FX: -86dBu
