Enttec 70572
D-Split Opti-Splitter for DMX512 Distribution

OUR PART #:  70572

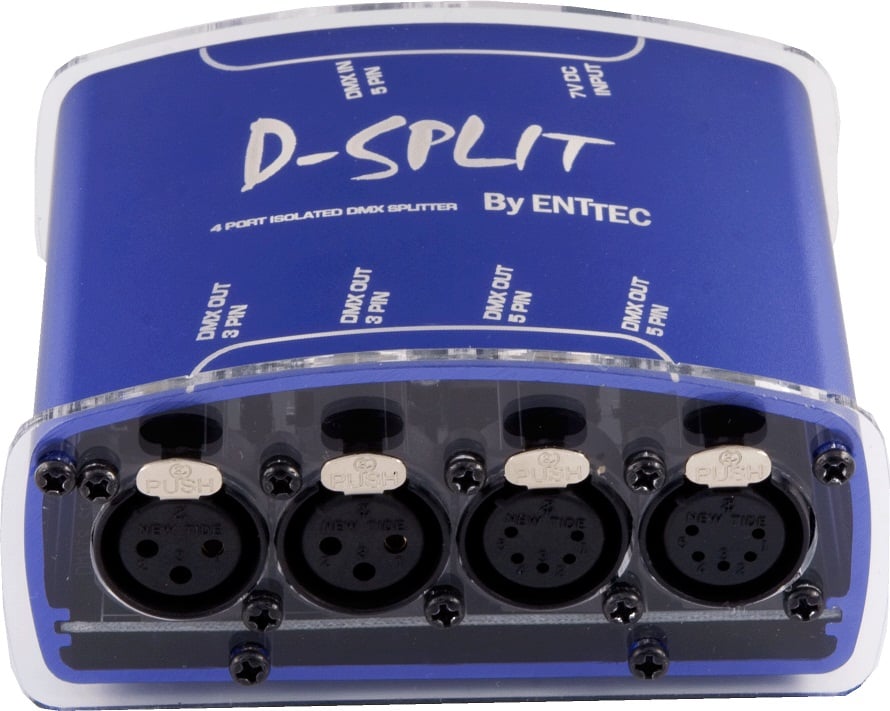

ENNTEC's 70572 is a D-SPLIT which is an optical isolator/splitter for DMX512. Its purpose is to allow the user more flexibility in connecting their DMX controlled devices.
Learn More
Our Price: $133.00
List Price: $140.00
You save 5%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Enttec 70572
Qty:
In Stock

Similar Products

ENNTEC's 70572 is a D-SPLIT which is an optical isolator/splitter for DMX512. Its purpose is to allow the user more flexibility in connecting their DMX controlled devices. Instead of having to make them all fit within a single daisy chain, each of the four outputs from the D-SPLIT can be the start of its own chain, and multiple D-SPLITs can be linked together if needed.

Applications:

  • Small Theatres
  • Musicians/Bands
  • DJs
  • Churches

ENTTEC 70572 Features:

  • Lightweight and portable\1 input, 4 outputs, alloptically isolated (protects against up to 1000V of strayvoltage)
  • DMX512-1990 compatible
  • Control up to 512 channels
  • LED indicators show Power and DMXoutput
  • External 7V Power Supply
  • Has two 5 pin and two 3 pin outputs for greater flexibility

ENTTEC 70572 Specifications:

  • DMX Output - 5 Pin XLR and 3 Pin XLR. All four may be used simultaneously, or any combination.
  • 1000V isolation between input and output, and between any individual output receptacles. This is to protect your console from surges on DMX line,and also keep any stray voltage from crossing to other DMX chains.
