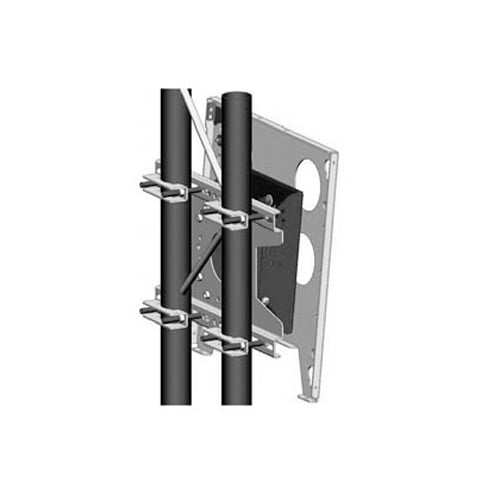

Chief Manufacturing TPP2029
Large Tilt Truss Mount

OUR PART #:

Quick, easy and versatile, the Truss/Pole Static Mounts...
Learn More

Sorry this product is currently out of stock.
Please contact a Sales Pro at 800-356-5844 for alternate options.

Similar Products

Quick, easy and versatile, the Truss/Pole Static Mounts, Pole Tilt-Adjustable Mounts and Truss Tilt-Adjustable Mounts are often used for mounting the large flat panel displays used in exhibit, retail and digital signage.

Features:

  • 3 Mount Options TPS: Truss/Pole Fixed Mount ; TPM: Pole Tilt-Adjustable Mount ; and TPP: Truss Pitch-Adjustable Mount.
  • 3 Pitch Adjustment Options on TPM and TPP.
  • Install on vertical or horizontal truss
  • Attach displays in portrait or landscape orientation.
  • TPS/TPP span most truss systems up to 14" (OD)
  • Truss/Pole clamps fit a wide variety of truss and pole dimensions. (see chart)
  • Finishing Cover accessories enhance aesthetics and cover hardware for added security
  • Exclusive Q-Latch Mounting System secures the Large Flat Panel Display with a lockable latch
  • Screen can be installed in portrait or landscape orientation ( PAC400 or MAC400 accessory can be used to rotate without removing the screen)
  • Integrated security allows display to be locked to mount by adding a padlock
  • Compatible with TPK clamp accessories.

Specifications:

  • Certifications:  UL Listed
  • Color:  Black
  • Minimum Depth:  4.13" (104.9mm)
  • Mounting Pattern Compatibility (Universal Versions):  200 x 200mm - 862 x 517mm
  • Orientation:  Landscape, Portrait
  • Overall Dimensions (H x W x D):  16.2" x 17.1" x 4.1" (412 x 433 x 105mm)
  • Post-Installation Leveling (Roll):  Yes
  • Solution Type:  Custom
  • Typical Screen Sizes:  42 - 71"
  • Weight Capacity:  150 lbs (68.kg)
