Audient ASP4816

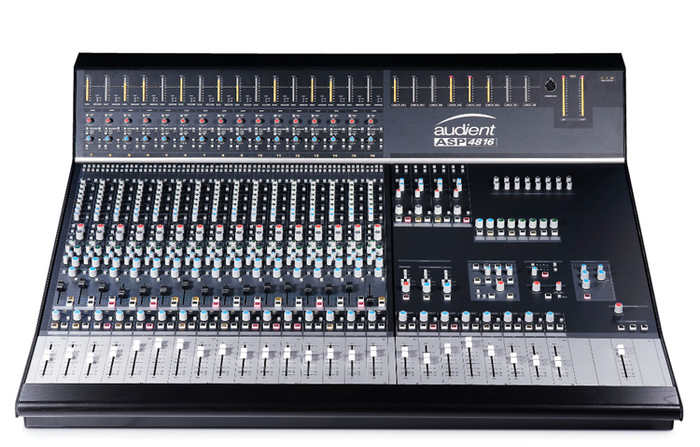

48 Input Compact Analog Recording Console with 40 Faders

OUR PART #:  ASP4816

Powerful, flexible and intuitive, the ASP4816 delivers superb audio performance in a compact frame size.
Learn More

Call for price! Not available online.
List Price: $18,999.00

Similar Products

Powerful, flexible and intuitive, the ASP4816 delivers superb audio performance in a compact frame size.

ASP4816 provides the key features of a large format recording console in a compact, cost effective form. Designed by audio guru, David Dearden and featuring Audient’s legendary analog circuitry, ASP4816 is the perfect centre piece for production studios and educational facilities.

The main input channels feature Audient’s renowned Class A preamp and 4 band EQ – a combination found in hundreds of ASP8024 equipped studios where many users no longer feel the need to reach for their outboard preamps and EQ. The console features 40 faders,16 bus routing, 6 auxes, 2 dedicated cue sends, 4 stereo returns, stereo bus compressor and a comprehensive monitor section.

Features:

  • In-line architecture - twin inputs on each channel
  • 48 inputs at mix
  • 40 faders
  • 16 Audient Class-A mic pres
  • 16 channels of EQ
  • 16 record buses
  • 6 auxes, 2 cue sends
  • Stereo bus compressor
  • Comprehensive monitor section

Specifications:

  • FREQUENCY RESPONSE:
      -  Mic input to Mix output <+0,-0.3dB 20Hz-20kHz @6-40dB gain.
      -  Line input to Mix output <+0,-0.3dB 20Hz-20kHz @0dB gain.
  • THD AND NOISE AT +20dB OUTPUT:
      -  Mic XLR input to any output <0.005% at 1kHz
      -  Line input to any output <0.005% at 1kHz
      -  Tape input to any output < 0.003% at 1kHz
  • NOISE:
      -  Mic EIN (20-20kHz, 150R source) <-127.5dBu
      -  Bus noise (no inputs routed) <-93dBu
      -  Bus noise (36 inputs routed) <-78dBu
  • CROSSTALK AND MUTE ATTENUATION AT 1kHz:
      -  Short fader Mute >90dB
      -  Long fader Mute >90dB
      -  Mix assign >90dB
      -  Bus assign >90dB
  • MIC CMRR:
      -  70dB (Min gain)
      -  75dB (Max gain)
  • MAXIMUM INPUT:
      -  Mic >+21dBu (min gain)
      -  Line +30dBu (min gain)
      -  Insert return >+21dBu
  • MAXIMUM OUTPUT INTO 2K OHMS:
      -  Mix output >+26dBu
      -  Bus output >+26dBu
      -  Aux output >+26dBu
      -  Insert send >+20dBu
      -  Monitor, Studio, F/B outputs >+20dBu
