Audix TM1 PLUS
Mic Kit with Calibration CD, Mount and Windscreen

OUR PART #:  TM1-PLUS

The TM1 Plus is a combination kit which includes the TM1 measurement microphone, threaded acoustic windscreen, shock mount clip...
Learn More
Our Price: $399.00
List Price: $450.00
You save 11%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Audix TM1 PLUS
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

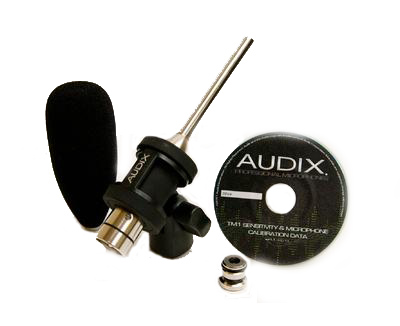

The TM1 Plus is a combination kit which includes the TM1 measurement microphone, threaded acoustic windscreen, shock mount clip, 1/2" calibrator adaptor and microphone calibration data on CD. The data files are a numeric representation of the TM1 frequency response. These, together with the provided sensitivity of the microphone, can be used with a variety of popular software measurement systems to correct the response curve of the microphone.

The TM1 is a 6 mm pre-polarized condenser microphone used for test and measurement applications. The TM1 is known for its linearity,
accurate response, consistency, ease of use and affordability. Characterized with a uniformly controlled omni-directional polar pattern,
the TM1 is designed to capture acoustic measurements for room analysis software programs, real time analyzers and other sound control
devices. With an extremely flat frequency range of 20 Hz – 25 kHz, the TM1 is an excellent tool for sound engineers, sound companies, and
recording enthusiasts.

Requiring 18 - 52 Volts phantom power for operation, the TM1 features a precision machined 4-stage brass body and capsule housing, nickel plate finish, Switchcraft ® XLR, shock absorbent O-rings, and heavy duty snap to fit mic clip.

Applications:

  • Test and measurement
  • Room analysis software programs
  • Real time analyzers
  • Ambient room miking

Audix TM1 PLUS Specifications:

  • Transducer Type: Pre-polarized Condenser
  • Frequency Response: 20 Hz - 25 kHz +/-2dB
  • Polar Pattern: Omni
  • Output Impedance: 200 ohms
  • Sensitivity: 6.5mV / Pa @ 1k
  • Maximum SPL:
    • 130 dB with distortion < 1%
    • 140 dBMax
  • Signal to Noise Ratio: 66 dB
  • Equivalent Noise Level: 28 dB (A weighted)
  • Dynamic Range: 112 dB
  • Power Requirements: 18-52 Volts phantom
  • Connector: Switchcraft® male XLR
  • Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
  • Housing: 4 piece precision machined brass
  • Finish: Nickel
  • Length: 5.9" (150 mm)
