Goldline PROKIT30H-PN3B
Acoustic Analyzer Kit, PN3B pink noise generator, case

OUR PART #:  PROKIT30H-PN3B

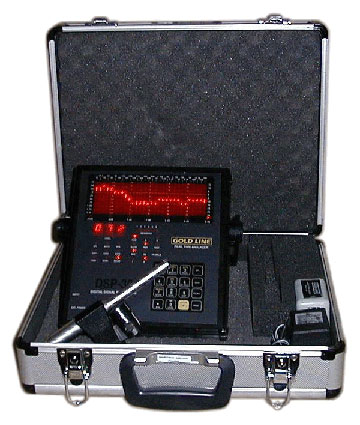

NOTE: The PROkit shown in image is for illustrative purposes only. Not representative of actual product.
Learn More
Our Price: $2,169.00
List Price: $3,154.91
You save 31%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Goldline PROKIT30H-PN3B
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

NOTE: The PROkit shown in image is for illustrative purposes only. Not representative of actual product.

ThePROkit30H-PN3B is an acoustic analyzer and its most commonly used accessories come in a rugged aluminum carry case with key locks and an adjustable shoulder strap. Everything you need for setting up a room for Home Theatre is in the kit.

The PN3B is a Pink Noise/Tone Generator providing pink noise or a 1kHz tone in continuous or gated format. Pink noise has an equal amount of energy per octave of bandwidth. The gate function allows control of the Pink Noise/Tone bursts via an external gating control such as a DSP30 Spectrum Analyzer or an external switch closure or logical signal.

What's in the kit:

  • DSP30 Audio Spectrum Analyzer
  • TEF04 instrument microphone
  • PN3B pink noise/tone generator with gate
  • BE2 120Vac to 12Vdc @ 500mA power source
  • Rugged suitcase style carry case made of aluminum with foam padding
  • Included Software:
      -  OPT106
      -  OPT112
      -  OPTDAS
      -  OPTNC
      -  TK51 Audio Toolkit DVD

Specifications of the PN3B:

  • OUTPUT: Unbalanced ¼" jack, impedance 620 ohms
  • GATE INPUT: 3.5mm mono jack
  • OUTPUT LEVEL:
      -  Pink Noise; 25 to 250mV (-30dBu to -10dBu)
      -  Sine Wave; 1kHz @ 52mV to 520mV (-35dBu to -3.5dBu)
      -  Duration of gated output is user controlled
  • FREQUENCY RANGE:
      -  Pink Noise: 20Hz - 20kHz
      -  1kHz: 1kHz Nominal
  • POWER REQUIREMENTS: 9 V battery
  • APPROVALS: -
    Emissions: - EN 55022 B - FCC Class B
    Immunity: - EN 55024 B
  • SIZE (W x H x D): 2½" x 4" x 1½"
  • WEIGHT: 6 oz.
  • CASE MATERIAL: High impact ABS
