Atlas Sound AA-PPRC
Control, Remote, Priority Paging

OUR PART #:  AA-PPRC

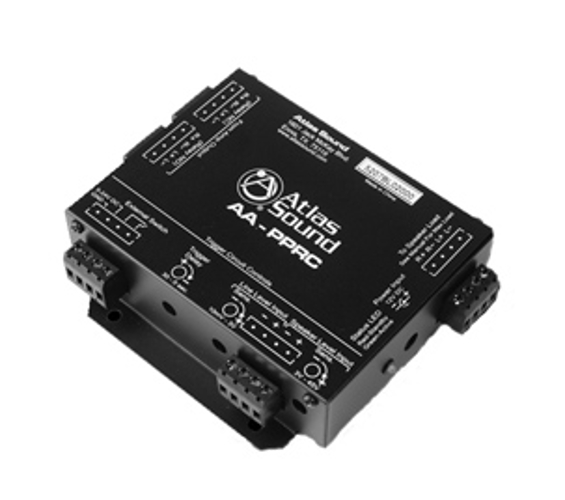

The Atlas Sound Priority Pager Relay Controller is a two input by two output speaker level relay switcher.
Learn More
Our Price: $184.99
List Price: $230.99
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Atlas Sound AA-PPRC
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Atlas Sound Priority Pager Relay Controller is a two input by two output speaker level relay switcher. The AA-PPRC is designed to be placed between an amplifier's output and the speaker load. It can be used with 25V, 70.7V, 100V or low impedance systems.

Each channel can handle up to 350 watts. Placement of the relay controller is not critical because the systems switching can be triggered from a variety of sources. Both High Level and Line Level signals can trigger the relay control circuit as well as a wide range of DC voltages.

Contact closer terminals have also been incorporated for your convenience. Relay release can also be adjusted allowing for proper paging override tuning. The AA-PPRC can be used in variety of installs such as board room applications where an audio presentation system needs to be muted so the page can be heard. The presentation system will resume when the page has completed. It is also ideal for zone paging management for new or existing 8O, 25v, 70.7V, and 100V systems.

Atlas Sound AA-PPRC Features:

  • 2 Channel
  • 350 W @ 70.7V Per Channel
  • Audio High Level Trigger Sense With Threshold Adjust3V - 45V
  • Audio Line Level Trigger Sense With Threshold Adjust20mV - 2V
  • Compact Size H 1.5"x W 4" x L 4.5" (H 38.1 mm x W101.6 mm x L 114.3 mm)
  • Contact Closure Trigger
  • DC Trigger 5V - 24V
  • Finish Black with White Lettering
  • Phoenix Type I/O Connectors
  • Relay Recover Adjustment 1 - 30 Seconds
  • Relay Trigger Threshold Adjust
  • Speaker Line Remote Switcher

Atlas Sound AA-PPRC Specifications:

  • Height: 1 1/2" (3.81 cm)
  • Width: 4" (10.16 cm)
  • Depth: 4 1/2" (11.43 cm)
  • Shipping Weight: 2.00 lbs (0.91 kgs)
  • Frequency Response: 20 Hz - 20 kHz Flat
  • Connector Type: Four Position Detachable PhoenixConnector
  • Finish: Black
  • Load Capacity: 5 AMPS
  • Compatability: 8O, 25V, 70.7V, 100V Systems
