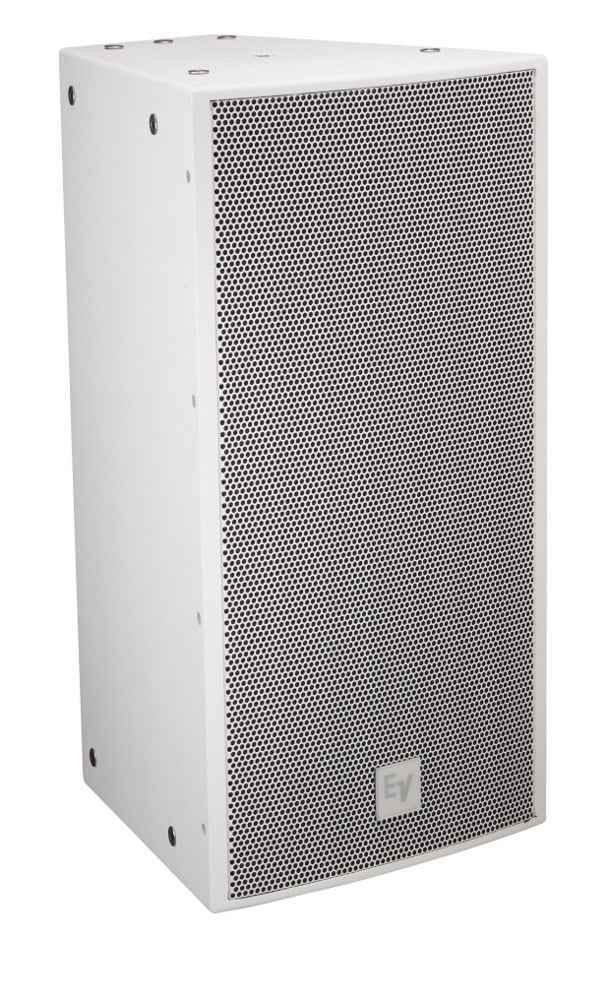

Electro-Voice EVF-1122S 94
12" 2-Way Full Range Speaker with 90 x 40 Dispersion in White

OUR PART #:  EVF1122S/94-WHITE

The Electro-Voice® EVF-1122S 94, a high power, 2-way loudspeaker system...
Learn More
Our Price: $1,867.00
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Electro-Voice EVF-1122S 94
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Electro-Voice® EVF-1122S 94, a high power, 2-way loudspeaker system, can be applied to a range of uses where high-quality sound reinforcement is needed in a compact, lightweight package. It utilizes the ND2B, a high-output 2" titanium compression driver, coupled to a Constant Directivity™ 90° x 40° waveguide. The SMX2121 12" woofer uses FEA optimization for motor, suspension, and electrical design for very low distortion, high efficiency, and maximum intelligibility at high SPL levels. The crossover uses steep 24 dB/octave slopes with equalization, providing very smooth vocal range response, linear off-axis response, and it includes a protection circuit for long term reliability.

All EVF trapezoidal enclosures are constructed with weather-resistant birch, and coated with EVCoat for maximum protection from the elements. EVF's unique acoustic and rigging designs allow for vertical and horizontal clusters to be built using any combination of loudspeakers from both the entire EVF & EVH Series. With an assortment of full-range, low-frequency, and subwoofer loudspeakers, the EVF Series provides the tools to maximize the flexibility of system design, no matter what the application and budget.

EVF's innovative input panels provide the choice of Phoenix-type connectors (included in all standard models), or allow the easy addition of a dual NL4-type connector cover plate or gland nut cover plate (for weatherizing applications). An externally accessible jumper also selects passive or active operation, and an available 70.7/100V transformer kit simply mounts to the input panel for use in distributed systems. All features provide the flexibility to manage more venues with less equipment, while quickly and precisely addressing customer requirements.

Electro-Voice EVF-1122S 94 Features:

  • Designed for Performance & Sports Venues, Stadium Systems, and other applications
  • ND2B 2" (51 mm) diaphragm, 1.4" (36 mm)-exit pure titanium compression driver
  • SMX2121 12” (305 mm) LF transducer with fully symmetric drive
  • Advanced fourth-order crossover network with HF protection
  • Coverage pattern: 90° x 40° Constant Directivity™ 12" rotatable waveguide
  • 98 dB sensitivity, 131 dB maximum SPL
  • System rating: 500 W continuous, (2000 W peak)
  • Active rating: LF 400 W / HF 40 W continuous (1600 W / 160 W peak)
  • (22) M10 threaded suspension points
  • PI version available with gland nut and stainless steel grille

Electro-Voice EVF-1122S 94 Specifications:

  • Coverage (Nominal -6 dB):
    • H: 90 °
    • V: 40 °
  • Crossover Frequency: 1450 Hz
  • Enclosure Material: 13-Ply Weather Resistant Birch
  • Environmental Specs: Standard versions: IEC 60529 IP44
  • Frequency Response (-10 dB): 49 - 19000 Hz
  • Frequency Response (-3 dB): 58 - 16000 Hz
  • Grille: Standard versions: 16 GA Galvanneal, Powdercoat, with screen behind
  • HF Transducer: ND2B, 2" (51 mm) Diaphragm Compression Driver
  • Input Connections: Phoenix/Euroblock style screw terminals
  • LF Transducer: SMX2121, 12" (305mm) Driver
  • Max. SPL/1m (calc): 131 dB
  • Minimum Impedance: 6 ohms
  • Nominal Impedance (Passive): 8 ohms
  • Passive Power Handling: 2000 W peak
  • Recommended High-Pass Frequency: 65 Hz
  • Sensitivity 1 W/1 m: 98 dB
  • Speaker Type: Full-Range, 2-Way
  • Suspension: (22) M10 Threaded Points
  • System Power Handling (Continuous/Program/Peak):  500/1000/2000 Watts
  • Dimensions (H x D x W): 30.26" x 16" x 16.27" (768.6 x 413.3 x 406.3 mm)
  • Net Weight: 63.05 lbs (28.6 kg)
