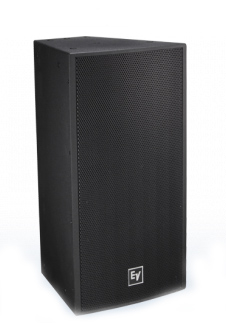

Electro-Voice EVF1122S/94-BLACK
12" 2-Way Speaker with 90 x 40 dispersion

OUR PART #:  EVF1122S/94-BLACK

The Electro-Voice® EVF-1122S/94 is a high power...
Learn More
Our Price: $1,867.00
Write the first review.
Electro-Voice EVF1122S/94-BLACK
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

The Electro-Voice® EVF-1122S/94 is a high power, 2-way loudspeaker system that can be used in a variety of applications where high quality sound reinforcement is required in a compact, lightweight package. The EVF-1122S/94 utilizes the ND2B, a high output 2” titanium
compression driver, coupled to a Constant Directivity™ 90° x 40° waveguide. The SMX2121 12” woofer used FEA optimization for motor, suspension, and electrical design for very low distortion, high efficiency, and maximum intelligibility at high SPL levels. The crossover uses steep 24 dB/octave slopes with equalization for very smooth response in vocal range, linear off-axis response, and a protection circuit for long term reliability.

Every EVF trapezoidal enclosure is constructed out of weather-resistant birch, and coated with EVCoat for maximum protection from the elements. EVF‘s unique acoustic and rigging designs allow for vertical and horizontal clusters to be built using any combination of loudspeakers from both the entire EVF & EVH Series. With an assortment of full-range, low-frequency, and subwoofer loudspeakers, the EVF Series provides the tools to maximize the flexibility of system design, no matter what the application and budget.

EVF‘s innovative input panels provide the choice of Phoenix-type connectors (included in all standard models), or allow the easy addition of a dual NL4-type connector cover plate or gland nut cover plate (for weatherizing applications). An externally accessible jumper also selects passive or active operation, and an available 70.7/100V transformer kit simply mounts to the input panel for use in distributed systems. All features provide the flexibility to manage more venues with less equipment, while quickly and precisely addressing customer requirements.

Features:

  • Designed for Performance & Sports Venues, Stadium Systems, and other applications
  • ND2B 2” (51 mm) diaphragm, 1.4” (36 mm)-exit pure titanium compression driver
  • SMX2121 12” (305 mm) LF transducer with fully symmetric drive
  • Advanced fourth-order crossover network with HF protection
  • Coverage pattern: 90° x 40° Constant Directivity™ 12” rotatable waveguide
  • 98 dB sensitivity, 131 dB maximum SPL
  • System rating: 500 W continuous, (2000 W peak)
  • Active rating: LF 400 W / HF 40 W continuous (1600 W / 160 W peak)
  • (22) M10 threaded suspension points
  • PI version available with gland nut and stainless steel grille

Specifications:

  • Input Connections: Phoenix/Euroblock style screw terminals
  • Frequency Response: (-3 dB) 58 - 16000 Hz
  • Frequency Response: (-10 dB) 49 - 19000 Hz
  • Recommended High-Pass Frequency: 65 Hz
  • Sensitivity 1 W/1 m: 98 dB
  • Max. SPL/1m (calc): 131 dB
  • Coverage (Nominal -6 dB) H: 90deg
  • Coverage (Nominal -6 dB) V: 40deg
  • System Power Handling (Continuous/Program/Peak): 500 Watts
  • LF Transducer: SMX2121, 12 in (305mm) Driver
  • HF Transducer: ND2B, 2 in (51 mm) Diaphragm Compression Driver
  • Crossover Frequency: 1450 Hz
  • Nominal Impedance: (Passive) 8 Ohms
  • Minimum Impedance: 6 Ohms
  • Enclosure Material: 13 Ply Weather Resistant Birch
  • Grill: 16 GA Galvanneal, Powdercoat, with Rotatable Logo
  • Suspension: (22) M10 Threaded Points
  • Dimensions:
      -  Height: 768.6 mm (30.26")
     -  Width: 406.3 mm (16")
      -  Depth: 413.3 mm(16.27")
  • Net Weight: 28.6 kg (63.05 lbs)
