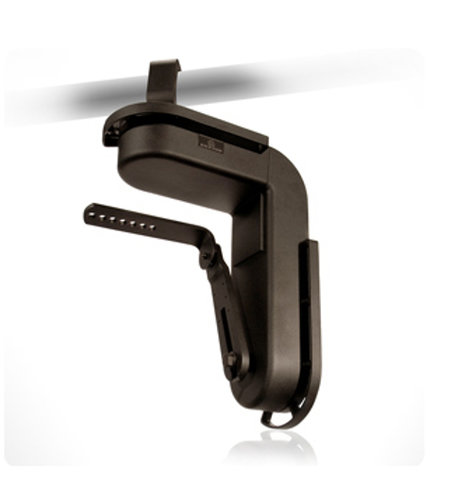

Apollo Design Technology AC-RIGHT-ARM-3
Right Arm

OUR PART #:  AC-RIGHT-ARM-3

The Right Arm adds pan and tilt capabilities to a wide range of static theatrical and studio lighting fixtures...
Learn More
Our Price: $1,149.73
List Price: $1,359.00
You save 15%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Apollo Design Technology AC-RIGHT-ARM-3
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products
The Right Arm adds pan and tilt capabilities to a wide range of static theatrical and studio lighting fixtures, allowing the designer to maximize the lighting rig without crowding fixtures or over-extending the budget. Video cameras and LCD projectors can be blended into the lighting rig with minimal preparation, providing easy adjustment from the lighting console. The Right Arm conveniently repositions these devices in theatrical and church productions, corporate events, trade shows - anywhere flexibility in the light plot is needed.

The Right Arm contains a two point integral balancing system that allows the use of fixtures which are front or rear heavy, i.e. a long throw ellipsoidal or an ellipsoidal using a color changer on the front, without adding counter weights or modifying the fixture. The Right Arm offers a wide range of adjustment for fixture heights and widths without removing shutters or existing yokes.

A great feature of the Right Arm is that the pan and tilt range can be defined by the user. This limits the Right Arm to areas that require light and increases accuracy. An optional speed control channel provides smooth movement with all loads and speeds. With the repositioning capabilities of the Right Arm, reductions in equipment costs, labor costs, and safety hazards may be realized. Safety cable included.

Apollo Design Technology AC-RIGHT-ARM-3 Features:

  • LCD Screen
  • User defined pan and tilt range
  • (1) 5-pin output
  • (1) 4-pin output

Apollo Design Technology AC-RIGHT-ARM-3 Specifications:

  • Compatible Fixtures: Adjustable to accommodate various fixtures and allow for color changers and dousers.
  • Dimensions and Key Components:
    • Height:  26"(660.4mm) with clamp
    • Height:  23.3" (591.8mm)
    • Width:  15" (381mm)
    • Depth:  7" (177.8mm)
  • Weight: 28lb (12.7kg) without fixture
  • Shipping Weight: 34lb (17.5kg) without fixture
  • Capacity: 40lb (18.1kg)
  • Pan:
    • Degrees of Movement: 300°
    • Pan Speed: 180° in 6 seconds
    • Pan Torque: 5 foot-pounds average
  • Tilt:
    • Degrees ofMovement: 270°
    • Tilt Speed: 180° in 6 seconds
    • Tilt Torque: 10 foot-pounds average
  • Ratings: UL STD 73 Compliant, CE
  • Drive System: High Torque Stepper Motors
  • Power: Built-in Universal Power Supply
  • Operating Voltage: 90-260 VAC, 50/60 Hz (autoselect)
  • Right Arm Power Requirement: 65 watts
  • Arm Rated Power: 50 VA maximum
  • Fixture Power Cord Rating: 15 amps, 250 volts max
  • Accessory Ports: 24 volts DC 40 watts max
  • Current Required for Right Arm Alone: 0.5 amps
  • Data/Power Transmission Power Cables: 1 for Arm (connector not included) 1 for fixture (connector not included)
  • Data Connectors: XLR 5-pin, male/female
  • Accessory Outputs: 1 XLR 5-pin, female; 1XLR4-pin female

WARRANTY: Items are covered for defects in materials and workmanship forone year, including repair parts and repair labor on defective item, from dateof Apollo invoice. The warranty covers freight for 30 days after initial purchase. Apollo does not cover any other loss resulting from product failure. Products being returned for warranty repair must display the original serial number sticker.  Removal of the serial number voids the product's limited warranty.
