Coleman Cable 823328-1000
Cable 12/3 SJOOW 90C ROHS Blk

OUR PART #:  823328-1000

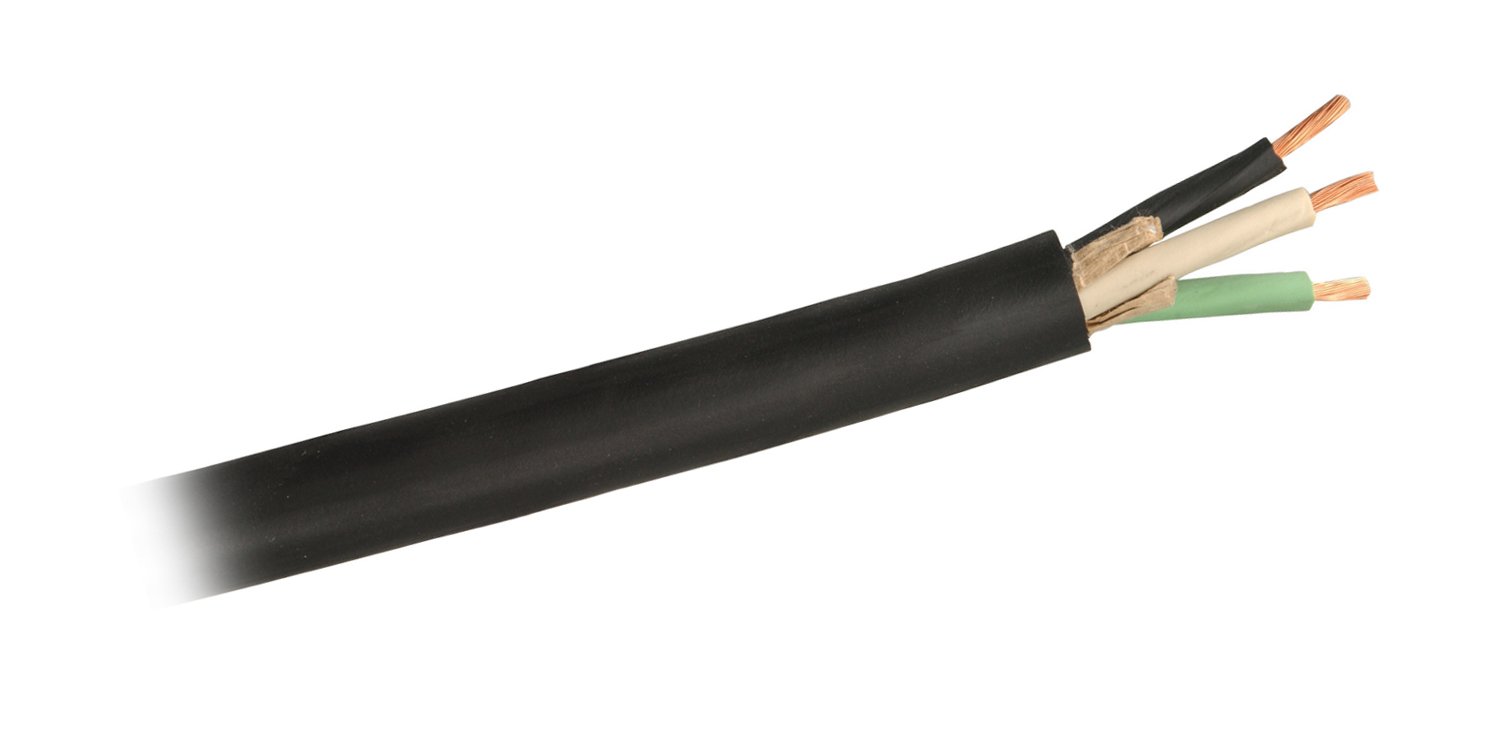

This cable consists of three bare copper insulated conductors cabled with fillers and an overall jacket.
Learn More
Our Price: $1,051.43
List Price: $1,502.04
You save 30%!
Write the first review.
Coleman Cable 823328-1000
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

This cable consists of three bare copper insulated conductors cabled with fillers and an overall jacket.

Applications:

  • Motor leads, portable lights, battery chargers, portable stage lights and portable machinery
  • National Electric Code Article 400 applications

Features:

  • Manufacturered with advanced synthetic rubber compounds
  • -40°C to 90°C temperature extremes
  • Exceptional flexibility
  • Excellent resistance to flame, deformation, ozone, oils, acids and chemicals
  • Oil resistant insulation and jacket
  • Abrasion resistant
  • Flexible in cold temperatures

Specifications:

  • Temperature Rating: -40degC to 90degC
  • Operating Voltage: 300 V RMS Max.
  • DC Resistance per Conductor: @ 20OC 1.59 Ohms/1M' Nom.
  • Conductor: 12 AWG Bare Copper
  • Stranding: 65/30
  • Insulation Material: EPDM
  • Insulation Thickness: 0.031'' Nom.
  • Insulated Conductor Diameter: 0.154'' Nom.
  • Number of Conductors: 3
  • Lay Length: 3.00'' Nom.
  • Filler Type: Paper
  • Separator/Wrap: Paper Tissue
  • Jacket Material: CPE
  • Jacket Thickness: 0.049'' Nom.
  • Overall Cable Diameter: 0.430'' Nom.
  • Approximate Cable Weight: 145.0" Lbs/1M' Nom.
  • Flame Rating: UL/CSA Horizontal Flame Test
