Thermionic Culture Phoenix SB Stereo Tube Compressor Instant Rebate
Our Price: $4999.00
Instant Rebate: $1000.00
Your Price: $3999.00... read more

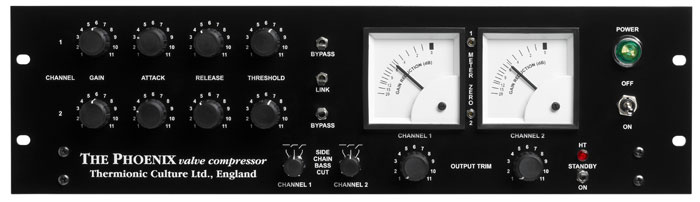

Thermionic Culture PHOENIX-SB
Stereo Tube Compressor

OUR PART #  PHOENIX-SB

Sale Price: $3,999.00
List Price: $4,999.00
You save 20%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Thermionic Culture have released a new version of the Phoenix soft knee stereo valve compressor, the Phoenix Standby. This is the same classic deisn as the previous Phoenix S/C ( side chain ) model incorporating hand built point to point wiring,  Mullard and Siemens valves and custom Sowter transformers.

New features include a standby switch which is provided to extend valve and capacitor life. When in 'standby' the HT current through the valves is only 50% of the normal value. The zero level meter adjusters have now been front to the front panel to make calibration easier and to avoid having to take the unit out of the rack.

Thermionic Culture have added a third Phoenix stereo valve compressor to the range. This SC, or side chain version is virtually identical to the standard model, but has in addition the same side chain filter section from the Phoenix Mastering Compressor (MC). This side chain filter provides 150Hz & 300Hz, but more permutations are possible when the MC is used in stereo mode with the link switch engaged. So, the SC model has the same higher gain structure as the standard model, which means it can slam more than the Mastering model, which makes it more useful for individual tracking or mixing functions, but added the extra versatility of having one of the best two bus compressors available for your stereo bus due to the chain filters.

Features:

  • All valve design for greater presence and naturality.
  • Completely free from solid state additives.
  • Transparent compression.
  • Punchy when pushed.
  • Drive it hard for compression effects and distortion.
  • Absolutely flat frequency response over entire audio range and beyond.
  • Minimal phase shift giving a crisp and warm sound.

Phoenix Side Chain Specifications

  • Max output level (MOL)
    +19dB into 600 ohms
    + 24dB into 10K ohms
  • Max Gain
    30dB
  • Total Harmonic Distortion
    Better than 0.06% @ 1kHz @100Hz
  • Noise, IEC weighted
    better than 100dB below MOL
  • Input Impedance
    15kO
  • Frequency response
    <1dB variation over 12Hz to 56kHz
  • Attack Time
    0.004 sec to 0.12 sec
  • Release Time
    0.04 sec to 2.4 sec
  • Output Impedance
    600 ohms

VALVE COMPLEMENT (2ea)

  • Input/Compression:
    PCC85 (equiv. 9AQ8)
  • Output:
    ECC81 (equiv. 12AT7, CV4024)
  • Side chain detector:
    EB91 (equiv. 6AL5, CV4025).

Click to download

Thermionic Culture Phoenix SB Stereo Tube Compressor Instant Rebate

Our Price: $4999.00
Instant Rebate: $1000.00

Your Price: $3999.00

Looking to warm those tracks up?

Now through December 31st, when you purchase your Phoenix SB from Full Compass you will Save $1000 Instantly!

The price shown on the Phoenix SB product page reflects the instant rebate. For more information on this or any Thermionic Culture gear please contact your Sales Pro at 800-356-5844.

Thermionic Culture Phoenix SB Stereo Tube Compressor Instant Rebate
Offer good between 10/13/2016 and 12/31/2016 Learn More About The Phoenix SB!
Thermionic Culture Phoenix SB Stereo Tube Compressor Instant Rebate
Our Price: $4999.00
Instant Rebate: $1000.00
Your Price: $3999.00... read more

Thermionic Culture PHOENIX-SB
Stereo Tube Compressor

OUR PART #  PHOENIX-SB

Product Information:

Thermionic Culture have released a new version of the Phoenix soft knee stereo valve compressor, the Phoenix Standby. This is the same classic deisn as the previous Phoenix S/C ( side chain ) model incorporating hand built point to point wiring,  Mullard and Siemens valves and custom Sowter transformers.

New features include a standby switch which is provided to extend valve and capacitor life. When in 'standby' the HT current through the valves is only 50% of the normal value. The zero level meter adjusters have now been front to the front panel to make calibration easier and to avoid having to take the unit out of the rack.

Thermionic Culture have added a third Phoenix stereo valve compressor to the range. This SC, or side chain version is virtually identical to the standard model, but has in addition the same side chain filter section from the Phoenix Mastering Compressor (MC). This side chain filter provides 150Hz & 300Hz, but more permutations are possible when the MC is used in stereo mode with the link switch engaged. So, the SC model has the same higher gain structure as the standard model, which means it can slam more than the Mastering model, which makes it more useful for individual tracking or mixing functions, but added the extra versatility of having one of the best two bus compressors available for your stereo bus due to the chain filters.

Features:

  • All valve design for greater presence and naturality.
  • Completely free from solid state additives.
  • Transparent compression.
  • Punchy when pushed.
  • Drive it hard for compression effects and distortion.
  • Absolutely flat frequency response over entire audio range and beyond.
  • Minimal phase shift giving a crisp and warm sound.

Phoenix Side Chain Specifications

  • Max output level (MOL)
    +19dB into 600 ohms
    + 24dB into 10K ohms
  • Max Gain
    30dB
  • Total Harmonic Distortion
    Better than 0.06% @ 1kHz @100Hz
  • Noise, IEC weighted
    better than 100dB below MOL
  • Input Impedance
    15kO
  • Frequency response
    <1dB variation over 12Hz to 56kHz
  • Attack Time
    0.004 sec to 0.12 sec
  • Release Time
    0.04 sec to 2.4 sec
  • Output Impedance
    600 ohms

VALVE COMPLEMENT (2ea)

  • Input/Compression:
    PCC85 (equiv. 9AQ8)
  • Output:
    ECC81 (equiv. 12AT7, CV4024)
  • Side chain detector:
    EB91 (equiv. 6AL5, CV4025).

Thermionic Culture Phoenix SB Stereo Tube Compressor Instant Rebate

Our Price: $4999.00
Instant Rebate: $1000.00

Your Price: $3999.00

Looking to warm those tracks up?

Now through December 31st, when you purchase your Phoenix SB from Full Compass you will Save $1000 Instantly!

The price shown on the Phoenix SB product page reflects the instant rebate. For more information on this or any Thermionic Culture gear please contact your Sales Pro at 800-356-5844.

Thermionic Culture Phoenix SB Stereo Tube Compressor Instant Rebate
Offer good between 10/13/2016 and 12/31/2016 Learn More About The Phoenix SB!
