Quam SYSTEM-19/8 24"x24" Tile Replacement Loudspeaker System, 8 Ohm Impedance

OUR PART #: SYSTEM-19/8

Copied to clipboard

Quam's SYSTEM 19 / 8 is a complete, 2-way loudspeaker assembly with an industry standard 6-1/2" woofer and 1" dome tweeter, multiple transformer options... ...Read more

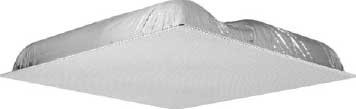

Quam SYSTEM-19/8 24"x24" Tile Replacement Loudspeaker System, 8 Ohm Impedance Image 1
Quam SYSTEM-19/8 24"x24" Tile Replacement Loudspeaker System, 8 Ohm Impedance
Our Price: $162.44
List Price: $196.72
You save 17%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$5/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Quam's SYSTEM 19 / 8 is a complete, 2-way loudspeaker assembly with an industry standard 6-1/2" woofer and 1" dome tweeter, multiple transformer options, perforated steel baffle, and integral molded fiber enclosure.

Includes:

  • LF Speaker: 150mm (6") diameter frame, polypropylene cone, butyl surround
  • HF Speaker: 25.4mm (1") diameter Mylar dome
  • Transformer: 8Ω, 30W RMS

Features:

  • Finish: Baked epoxy hybrid
  • Intended Use: Indoor environment, mounted parallel to floor plane in a 24" wide suspended ceiling tile grid
  • Program Material: Music, voice and signal tones

Specifications:

  • Average Sensitivity: 91dB-SPL, 1W / 1M
  • Loudspeaker Power: 30W RMS, EIA 426A Standard Rating
  • Calculated Maximum System Output: 104dB-SPL, 20W / 1M
  • Frequency Response: 60Hz - 20kHz EIA 426A Standard
  • Nominal Coverage Angle: 100° Included angle, -6dB
    • 2kHz, half space
