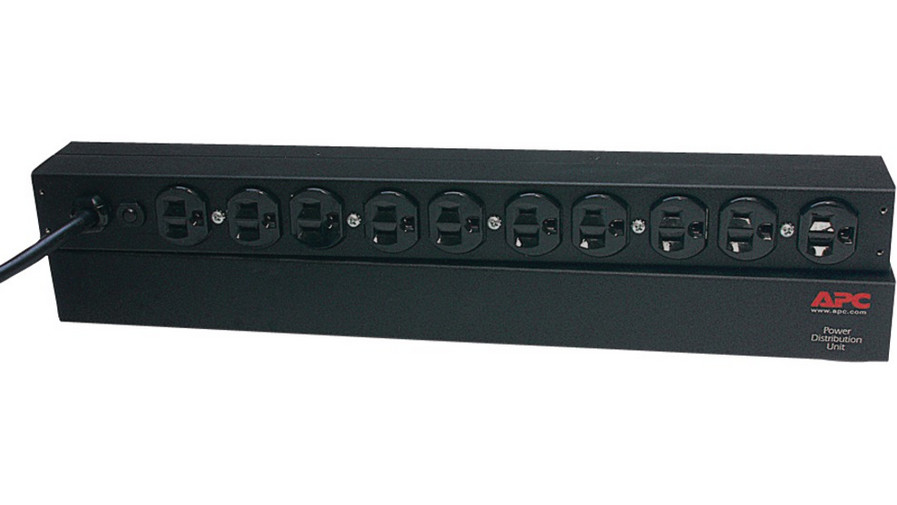

American Power Conversion AP9562
15A 20V 1RU Basic Rack Power Distribution Unit

OUR PART #:  AP9562

American Power Conversion's AP9562 basic rack power distribution unit allows you to put power where it is needed most - in the racks, near the equipment.
Learn More
Our Price: $102.01
List Price: $127.00
You save 20%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

American Power Conversion AP9562
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

American Power Conversion's AP9562 basic rack power distribution unit allows you to put power where it is needed most - in the racks, near the equipment. Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Specifications:

Output

  • Nominal Output Voltage: 120V
  • Maximum Total Current Draw per Phase: 15A
  • Output Connections: (10) NEMA 5-15R

Input

  • Nominal Input Voltage: 100V,120V
  • Input Frequency: 50/60 Hz
  • Regulatory Derated Input Current (North America): 12A
  • Input Connections: NEMA 5-15P
  • Cord Length: 12 feet (3.66 meters)
  • Number of Power Cords: 1
  • Maximum Input Current per phase: 15A
  • Load Capacity: 1800 VA

Physical

  • Net Weight: 5.50 lbs. (2.50 kg)
  • Maximum Height: 1.76 inches (44 mm)
  • Maximum Width: 17.60 inches (447 mm)
  • Maximum Depth: 2.26 inches (57 mm)
  • Shipping Weight: 8.00 lbs. (3.64 kg)
  • Shipping Height: 2.76 inches (70 mm)
  • Shipping Width: 18.26 inches (464 mm)
  • Shipping Depth: 9.00 inches (229 mm)
  • Color: Black

Environmental

  • Operating Environment: 23 - 113 °F (-5 - 45 °C)
  • Operating Relative Humidity: 0 - 95%
  • Operating Elevation: 0-10000 feet (0-3000 meters)
  • Storage Temperature: -13 - 149 °F (-25 - 65 °C)
  • Storage Relative Humidity: 0 - 95%
  • Storage Elevation: 0-50000 feet (0-15000 meters)

Conformance

  • Regulatory Approvals: cUL Recognized,CSA,GOST,METI Denan,UL 1363,ULRecognized
  • Standard Warranty: 2 years repair or replace
  • Environmental Compliance: RoHS
