Lightronics IDW104 Wall Mount DMX Opto-Isolator, 1 Input and 4 Outputs, 5-pin XLR

OUR PART #: IDW104

Copied to clipboard

The IDP-104 is an optically isolated DMX splitter with one DMX input and four independent DMX output circuits. ...Read more

Lightronics IDW104 Wall Mount DMX Opto-Isolator, 1 Input And 4 Outputs, 5-pin XLR Image 1
Lightronics IDW104 Wall Mount DMX Opto-Isolator, 1 Input And 4 Outputs, 5-pin XLR
Our Price: $525.00
List Price: $700.00
You save 25%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The IDP-104 is an optically isolated DMX splitter with one DMX input and four independent DMX output circuits.

The DMX input is overcurrent and overvoltage protected in each of the three DMX lines (Data-, Data+, and Common). Each of the four DMX output circuits also have overcurrent and overvoltage protection in each of the three DMX lines (Data-, Data+, and Common). The IDP-104 is powered by an external, low voltage, UL listed, power supply which is provided with the unit.

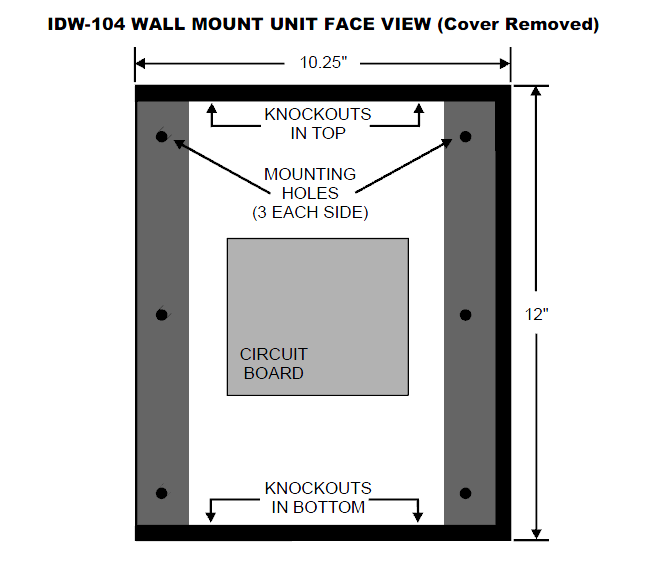

Wall Mount Unit: The wall mount version is supplied in a metal box with appropriate mounting holes. Knockouts are provided for signal access. DMX IN and DMX OUT connections are via terminal strips with screw down terminals. The units dimensions are 10.25"W X 12"H X 4.25"D.
