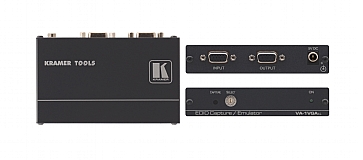

Kramer VA-1VGAXL
Computer Graphics Video EDID Capture/Emulator


The VA-1VGAxl is an EDID emulator for computer graphics video signals.
Learn More
Our Price: $168.00
List Price: $210.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


Kramer VA-1VGAXL
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products
The VA-1VGAxl is an EDID emulator for computer graphics video signals. The unit can capture an EDID setting in non-volatile memory from the output or present any one of 13 preset resolutions to allow convenient and reliable connection to the source.
  • VGA input and output - Up to WUXGA
  • Bandwidth - 1.8GHz
  • 13 Presets Resolutions - 800x600 @60Hz, 1024x768 @60Hz, 1152x864 @75Hz, 1280x720 @60Hz, 1280x800 @60Hz, 1024x1024 @60Hz, 1360x768 @60Hz, 1440x900 @60Hz, 1440x1050 @60Hz, 1600x1200 @60Hz, 1680x1050 @60Hz, 1920x1080 @60Hz, 1920x1200 @60Hz.
  • Control - EDID capture button, 16-position rotary switch.
  • Compact Kramer TOOLS - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.


  • Input: 1 VGA (up to WUXGA) on a 15-pin HD connector.
  • Output: 1 VGA (up to WUXGA) on a 15-pin HD connector.
  • Max. Output Level: >2Vpp
  • Bandwidth (-3dB): 1.8GHz
  • Diff. Gain: 0.02%
  • Diff. Phase: 0.02Deg.
  • K-Factor: <0.05%
  • S/N Ratio: 74dB @5MHz (unweighted: 66dB).
  • Controls: Push button for EDID monitor information storage, 16-position rotary switch.
  • Coupling: DC, direct wiring between input and output.
  • Power Source: 12V DC, 20mA
  • Dimensions: 4.8" x 3.03" x 1"
