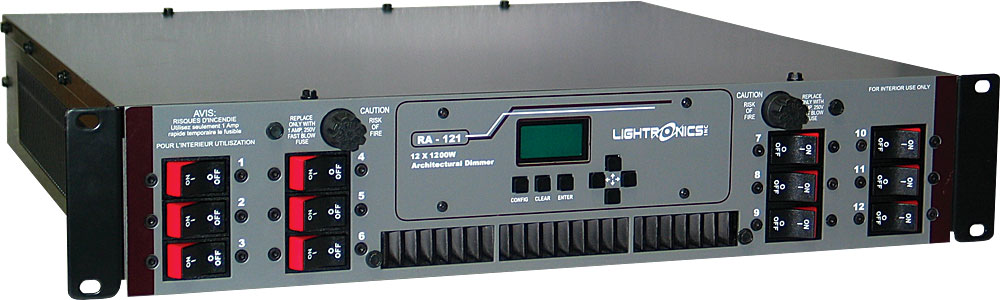

Lightronics Inc. RA-121-PL
12 Channel Architectural Rack Mount Dimmer with Powerlock Outlet Panel

OUR PART #:  RA-121-PL

The RA-121 is a 12 channel X 1200 Watts per channel dimmer. It accepts DMX-512 signals and allows remote station control of preset scenes.
Learn More
Our Price: $2,005.50
List Price: $2,674.00
You save 25%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Lightronics Inc. RA-121-PL
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products
The RA-121 is a 12 channel X 1200 Watts per channel dimmer. It accepts DMX-512 signals and allows remote station control of preset scenes. The unit operates from either single or three phase power. The highly versatile RA-121 may utilize multiple remote stations to activate specific user programmed scenes pre-stored in the unit. Several remote types may be used.

Lightronics Inc. RA-121-PL Rack Mount Dimmer Features:

  • 12 channels
  • 1200 Watts per channel
  • Remote network control
  • DMX-512 control
  • Single or three phase power
  • Patchbay panel with 2 powerlock connections per channel *Non UL-508Compliant

Lightronics Inc. RA-121-PL Rack Mount Dimmer Specifications:

  • Channels/Capacity: 12 @ 1200 Watts each
  • Power Requirements: 120/208VAC Three Phase, 40 Amps each Leg OR 120/240VACSingle Phase, 60 Amps each Leg
  • Power Devices: Dual 65 Amp SCRs
  • Power Connector: Terminal Strip
  • Channel Output: Edison, Terminal Strip, Patch Panel, Socapex
  • Circuit Breakers: 10 Amp Fast Acting
  • Minimum Load: 15 Watts
  • Curve: Modified Square Law
  • Filter Rise Time: 350 Usec. Minimum
  • Output Function: DIMMER or RELAY Selectable
  • Control Input: DMX-512 USITT Standard with Softpatch
  • Front Panel Control: 8 char. x 2 Line LCD Display & Keypad
  • Remote Network: RS-485, 62.5 Kbaud, Bidirectional 9 Bit Network
  • Local Presets: 100 Scenes Standard, Expandable to 255 Scenes
  • Closure Input: 8 Inputs for Single, Dual Button, or Combine Stations
  • Remote Stations: Total of 32 Remote Station with Unique System Addresses
  • Slave Units: Up to 31 addt’l. units may be added
  • Size: 19”W x 3.5”H x 13”D
