Ace Backstage 144SL-BK Stage Pocket for S-0808 Digital Snake by Roland

OUR PART #: 144SL-BK

Copied to clipboard

The ACE Backstage 144SL-BK Stage Pocket is configured to receive the RSS 8 channel Digital Snake (S-0808) for on-stage use and storage. ...Read more

Ace Backstage 144SL-BK Stage Pocket For S-0808 Digital Snake By Roland Image 1
OKLwESuZtvA
1 Video
Ace Backstage 144SL-BK Stage Pocket For S-0808 Digital Snake By Roland
Our Price: $606.28
List Price: $730.80
You save 17%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

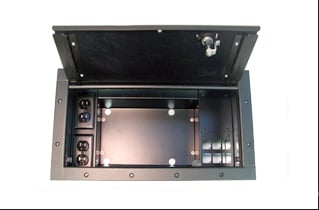

The ACE Backstage 144SL-BK Stage Pocket is configured to receive the RSS 8 channel Digital Snake (S-0808) for on-stage use and storage. The S-0808 slides easily in and out of the nesting frame that secures it for use while in the pocket. Adjacent to the S-0808 well is a panel frame allowing connectivity possibilities for up to 12 audio/video/production connectors, plus a storage well for an external battery pack or PoE component, and a generous raceway for A/C or other high voltage power. The orientation of the interior frame as well as the Lid Bezel assembly can be reversed to allow the AC power and/or storage well to be on the other side of the S-0808.

The basic construction incorporates 3 sub-assemblies:

LID/BEZEL - Heavy duty welded, 10ga. steel lid and 11ga. steel bezel. A unique assembly with spring loaded hinge pins and (2) hinged cableway slot closures with zinc plating mount directly to the Back Box. Both the lid and bezel are finished with oven cured, texture black powder coat.

BRACKET ASSEMBLY - Made from 18 ga. steel, this 3 piece bracket assembly consisting of the S-0808 well, connector panel mount, AC raceway, and additional storage well can be installed to house the S-0808 with mounted external battery or without. All Bracket Assemblies are finished with oven cured, texture black powder coat.

BACK BOX - Welded 14ga. steel with zinc corrosion resistant finish, 10”W x 18”L x 9”D. The 9” depth allows for cable-end connector clearance above the S-0808 and provides work clearance under the brackets. Combination knock-outs support feed through or distribution junction.

Note: A/C and panels shown in image are optional accessories, and NOT included.

What's Included:

  • (1) Trim Bezel Mounting Flange
  • (1) Stage Pocket Body Back Box
  • (1) Lid
  • (2) Hinge Pins
  • (2) Springs
  • (16) #8 Self-tapping Sheet Metal/ Wood Screws
  • (2) Slot closures (attached)

Features:

  • Extra double large capacity
  • Durable construction
  • Spring-loaded hinge pins
  • Cable way slots
  • Easy Installation

Specifications:

  • Body Size: 10" W x 9" H x 18" D
  • Lid and Mounting Flange Size: 10.5" W x .937" H x 18.5" D
  • Connector Capacity: Up to 12 "Connectrix", Neutrik, or Switchcraft
  • Cutout Dimensions: 10" W x 18" L
  • Pocket Material: CRS 10/11 Steel and/or Solid Half Hard Brass

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
