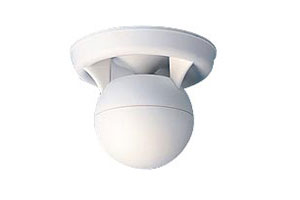

Soundsphere Loudspeakers 110B-SOUNDSPHERE
Ceiling Speaker, 35 Watts @ 4 Ohms


Call for price! Not available online.

The Soundsphere Model 110B loudspeaker was designed to provide clear voice announcements, seamless background music and even, omnidirectional coverage. The Model 110B is a compact, unobtrusive speaker that is just 10" in diameter and offers fast distributed system installation. Applications include retail stores; factories and warehouses; mass transportation centers; restaurants; and stadium and arena concourses, gift shops and rest rooms.

The 110B comes fully assembled, and its light weight allows many mounting possibilities, using either our hanging kit or mounting bracket. Both standard and custom colors are available.


  • Hemispherical Coverage Pattern
  • Articulate voice announcements
  • Light weight enables many varied mounting possibilities
  • Fully assembled and ready to mount
  • Hanging or surface mount
  • Standard and custom colors available


  • Sensitivity:  96dB SPL; 1W/1m
  • Maximum SPL:  111dB SPL; 30W/1m
  • Power Handling:  35 Watts
  • Frequency Response:  150Hz to 12kHz ± 6dB
  • Coverage:  180° vertical; 360° horizontal
  • Rated Impedance:  4 ohms
  • Weight:  8 lbs. (3.6 kg)
  • Height:  11-7/8" (302mm)
  • Sphere Diameter:  10" (254mm)
  • Reflector Diameter:  14-7/8" (378mm)
  • Driver:  Dual Cone 6-1/2"
  • Material:  Enclosure and reflector are structural foam polystyrene with rustproof hardware
