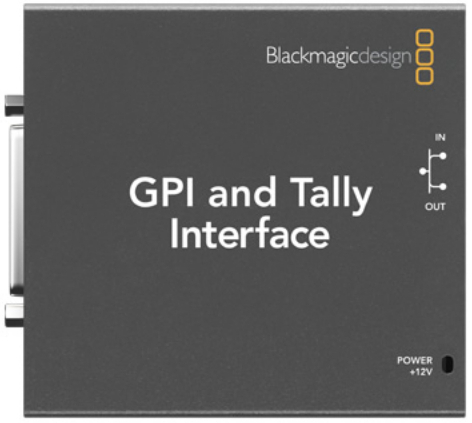

Blackmagic Design GPI and Tally Interface
for Adding 8 Tally Relay Contacts to an ATEM Switcher

OUR PART #:  GPI-TALLEY-INTERFACE

The GPI and Tally Interface from Blackmagic Design provides 8 contact closure inputs and 8 contact closure outputs for connecting to ATEM switchers and Videohub routers.
Learn More
Our Price: $470.25
List Price: $495.00
You save 5%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Blackmagic Design GPI and Tally Interface
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products
The GPI and Tally Interface from Blackmagic Design provides 8 contact closure inputs and 8 contact closure outputs for connecting to ATEM switchers and Videohub routers. Tallies will be displayed when connected to an ATEM switcher to indicate their "on-air" status and you can even connect multiple interfaces together to increase the number of inputs and outputs. GPI and Tally Interface also works as a Videohub control panel without buttons and LEDs so you can make your own! Now anyone can connect to Videohub routers to control cross-points.

Blackmagic Design GPI and Tally Interface Specifications:

Connections

  • Contact Closure: 25 pin D-type connector providing 8 opto isolated inputs and 8 relay contact closure outputs
  • Inputs: Optical isolators triggered by connection to ground. Max 5V at14mA.
  • Outputs: Mechanical relay contact closure to ground. Max 30V at 1A.
  • Ethernet: 10/100 BaseT with loop through for connecting to other ethernet-enabled equipment
  • Computer Interface: 1 x USB 2.0 high speed interface for configuration and firmware updates

Extras

  • Software Included: Configured via ATEM Switcher Utility
  • Internal Software Upgrade: Firmware built into software driver. Loaded at system startup or via updater software
  • Operating System: Microsoft Windows 7 and Apple Mac OS X
  • Power Supply: 12V power supply included with international socket adaptors for all countries
  • Product Warranty: 12 Months Limited Manufacturer's Warranty
