Intelix AVDA8-F
Audio/Video Distribution Amplifier Balun

OUR PART #:  AVDA8-F

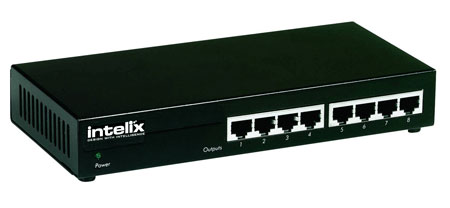

The Intelix AVDA-8 distribution amplifier balun distributes a single audio and video source to eight destinations (linkable up to 64 total destinations).
Learn More
Our Price: $548.06
List Price: $608.95
You save 10%!
Write the first review.
Intelix AVDA8-F
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Intelix AVDA-8 distribution amplifier balun distributes a single audio and video source to eight destinations (linkable up to 64 total destinations). The AVDA-8-F supports up to two channels of video and two channels of audio. The Intelix AVDA-8-F is compatible with Intelix composite video, s-video, and stereo audio baluns.

Specifications:

  • Max Distance:
    -Composite Video: 2200 feet
    -S-Video: 1000 feet
  • Source Impedance Requirements:
    -Video Out: 75 ohms
    -Audio Out: 600 ohms max
  • Destination Impedance Requirements:
    -Video In: 75 ohms
    -Audio In: 600 ohms min
  • Distribution Amplifier Impedance:
    -Video In: 100 ohms balanced
    -Audio In: 10 kOhms min balanced
    -Video Out: 100 ohms balanced
    -Audio Out: 600 ohms balanced
  • 3 dB Bandwidth:
    -Video: DC to 8 MHz
    -Audio: 50 Hz to 16 kHz
  • Maximum Differential Input:
    -Video: 0.55 Vp-p
    -Audio: 0.50 Vp-p
  • Maximum Differential Output:
    -Video: 0.55 Vp-p
    -Audio: 0.50 Vp-p
  • Insertion Loss:
    -Video: 0 dB max @ 4 MHz
    -Audio: 1 dB max @ 1 kHz
  • Video Return Loss: 24 dB minimus
  • Cable: Cat 3, Cat 5, Cat 5e, Cat 6, and Cat 7 compatible
  • Crosstalk Immunity: 60 dB minimum over the frequency range
  • Power Supply:
    -External AC: 100V
    -DC: +/- 12 VDC, 5W total max.
  • Power Supply Connector: 5-pin DIN; pin 1 GND, pin 2 GND, pin 4 -12V, pin 5 +12V
  • Common Mode Rejection
    -Video: Greater than 40 dB over the frequency range
    -Audio: Greater than 60 dB over the frequency range
  • Connectors:
    -Source Input: One (1) RJ45 on rear panel
    -Looping Output: One (1) RJ45 on rear panel
    -Distribution Outputs: Eight (8) RJ45s on front panel
  • Dimensions: 8.5" x 4" x 1.3"
  • Shipping Weight: 2 lbs.
  • Pin Out:
    -Video 1: 7 & 8, pair 4
    -Video 2: 4 & 5, pair 1
    -Audio 1: 1 & 2, pair 2
    -Audio 2: 3 & 6, pair 3
  • Temperature:
    -Operating: 32 to 131 degrees F
    -Storage: -4 to 185 degrees F
    -Humidity: up to 95%
  • Diagnostics: Green power LED on front panel
  • Warranty: 2 years
  • Included Accessories: Power Supply
