Chief Manufacturing MWRIWUB
MWRIWB w/ MSBUB universal interface bracket

OUR PART #:  MWRIWUB

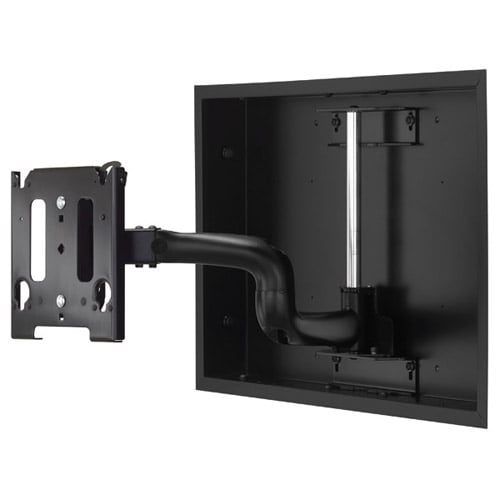

The MWRIW is an in-wall swing arm designed to create a low-profile installation.
Learn More

Add to Cart to See Price

Be the first to review.
Chief Manufacturing MWRIWUB
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The MWRIW is an in-wall swing arm designed to create a low-profile installation.

Features:

  • Ships fully assembled to save on installation time
  • Easily installs into PAC501B to create an ultra low profile installation
  • Extends over 22" (569 mm) for viewing from any angle

Specifications:

  • Certifications: UL Listed
  • Color: Black
  • Maximum Extension: 22" (558.8mm)
  • Minimum Depth: 0.5" (12.7mm)
  • Mounting Pattern Compatibility (Universal Versions): 100 x 100mm - 709 x 431mm. Note: Requires PAC501B. PACHFK1 available. Depth and Extension do not include interface bracket (adds 0.5 - 1.5")
  • Orientation: Landscape, Portrait
  • Overall Dimensions (H x W x D): 20.0" x 30.0" x 4.5" (508 x 762 x 114mm)
  • Post-Installation Leveling (Roll): Yes
  • Solution Type: Universal
  • Tilt: + 2┬░ , - 15┬░
  • Typical Screen Sizes: 30 - 55"
  • Wall Stud Compatibility (inches): 16
  • Weight Capacity: 125 lbs (56.7kg)

Note: Must order PAC501B In-Wall Accessory separately. MWRIWUB ships with MSBUB universal interface bracket. MWRIW6000B requires MSB interface separately. See MountFinder Pro for screen compatibility.
