Atlas Sound RX21-25
21RU Rack without Door

OUR PART #:  RX21-25

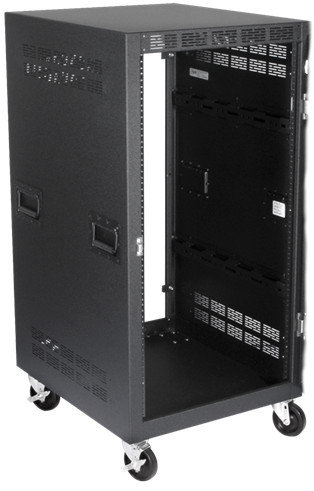

The Atlas Sound RX21-25 mobile cabinet is ruggedly constructed of 16-ga. CRS and include heavy-duty casters.
Learn More
Our Price: $611.99
List Price: $763.99
You save 20%!
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Atlas Sound RX21-25
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Atlas Sound RX21-25 mobile cabinet is ruggedly constructed of 16-ga. CRS and include heavy-duty casters. Equipped with a front pair of 11-gauge CRS adjustable mounting rails tapped 10–32 on standard E.I.A. 5/8"- 5/8"-1/2" spacing. Optional RR21 rear mounting rails are available for additional support. Front-to-rear mounting rail supports have slotted cutouts to easily adjust rail depth and to provide open raceways for containing vertically run wire and cable.

The RX21 features the additional benefit of having the supports positioned 19" apart to accept standard panel width accessories mounted in vertical orientation. Cabinet is 25 1/2" deep and has a vertical panel space height of 36 7/8" It features one pair of recessed, hinged, and rubber-padded steel grips on each side (four total) for transport convenience. Easy wiring access is provided through three wire isolation holes (two, 1 1/2" dia., and one oblong 1-1/2" x 3") in the rear base flange. The units' four, oversized, heavy-duty casters, two of which are locking, ensure smooth mobility, and have a load capacity of 175 lb. each – 700 lb. total weight capacity.

Atlas Sound RX21-25 Features:

  • 16-ga. CRS frame manufactured to E.I.A. standards
  • (4) 4" heavy-duty casters (175 lb. cap./ea.)
  • Includes 1 pair adjustable, 11-ga., front-to-rear mounting rails
  • Mounting rail supports with slotted cut-outs for vertical wire management
  • Perforated front and rear top flanges, sides and rear door provide ventilation and dissipation of equipment-generated heat
  • Optional removable front and rear doors (right or left-hand hinging) are identically keyed for security and convenience
  • RR21 optional rear mounting rails available
  • Rubber-padded steel grip "Road Handles" (2 Per Side)

Atlas Sound RX21-25 Specifications:

  • Width: 22-5/16" (56.67502 cm)
  • RackSpaces: 21
  • Height: 45-3/4" (116.205 cm)
  • Depth: 25-1/2" (64.77 cm)
  • Usable Depth: 24" (60.96 cm)
