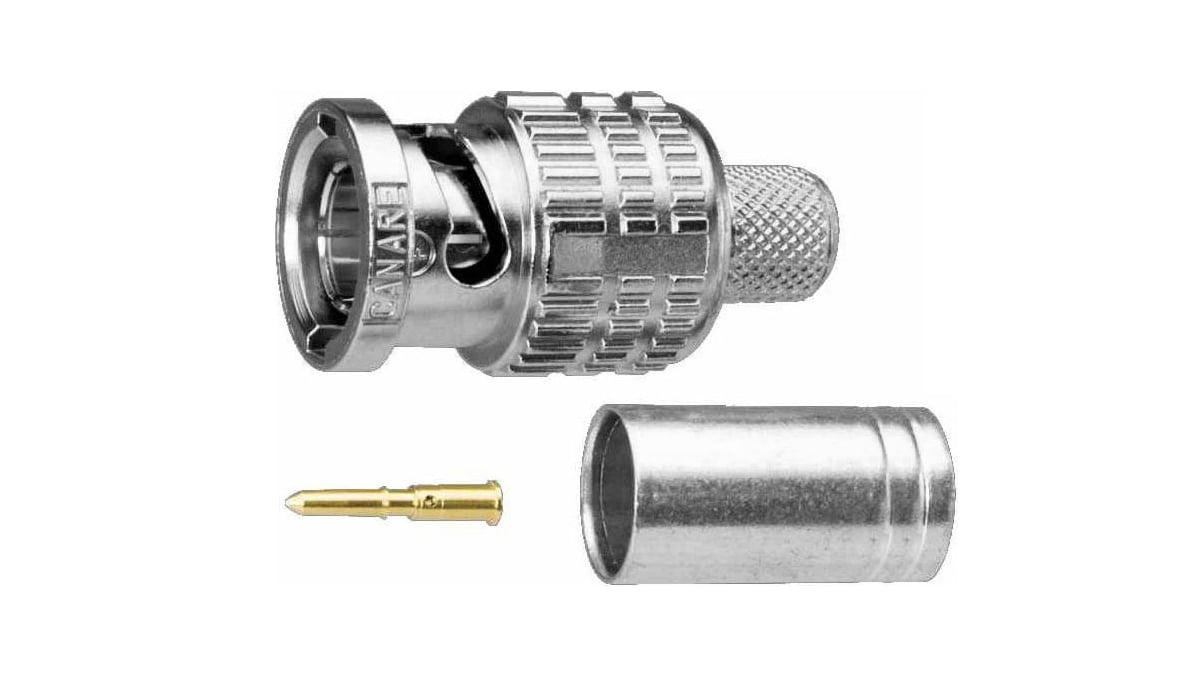

Canare BCP-B53
Connector, 75Ohm, Crimp-style, Male

OUR PART #:  BCP-B53

Canare's true 75Ohm BCP connectors have been widely used in a number of video formats analog to digital with outstanding electrical and mechanical performance.
Learn More
Our Price: $2.51
List Price: $2.62
Save up to 15% when you order by quantity!
  • Buy 25: $2.42 each.
  • Buy 50: $2.33 each.
  • Buy 100: $2.24 each.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Canare BCP-B53
Qty:
Similar Products

Canare's true 75Ohm BCP connectors have been widely used in a number of video formats analog to digital with outstanding electrical and mechanical performance. Exceeding 3.0Gbps HD-SDI requirements specified in SMPTE424M.

Features:

  • High performance of 1.1 or less VSWR up to 3GHz
  • Position mark on body allows the connector fit to be checked easily
  • Connector body only has been made die-cast, achieving lower price with high performance
  • Use of crimping to attach the connectors ensures quick, reliable installation
  • Lock mechanism used on insulation improves reliability by preventing shifting or detaching of the contact pin
  • Gold plating on the contact pin prevents deterioration, even after years of use
  • Elongated body design enables easy attachment and removal

Specifications:

  • Cable Compatibility: Canare L-4.5CHD, Belden 1694A (suggested)
  • Center Pin: B11020D
  • Sleeve: BN7046
  • Boot: CB05A
  • Die Set: TCD-35CA
