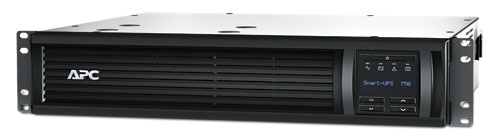

American Power Conversion SMT750RM2U
APC Smart UPS 750VA RM2U 120V

OUR PART #:  SMT750RM2U

The APC Smart-ups has a host of features designed to improve battery life while being eco-friendly.
Learn More
Our Price: $448.19
List Price: $621.00
You save 28%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

American Power Conversion SMT750RM2U
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The APC Smart-ups has a host of features designed to improve battery life while being eco-friendly. It is highly effecient and features intelligent battery managment to ensure your valuable data is protected in the case of power loss.

Features:

  • Intuitive LCD interface: Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
  • Predictive replace battery date: Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
  • Green mode: Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • Energy meter: Provides actual kilowatt hours of usage for energy conscious users.
  • Pure sine wave output on battery: Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
  • Single switched outlet group: Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
  • High online efficiency: Reduces utlility costs, generates less heat.
  • SmartSlot: Customize UPS capabilities with management cards.
  • Cold-start capable: Provides temporary battery power when the utility power is out.
  • Temperature-compensated battery charging: Prolongs battery life by regulating the charge voltage according to battery temperature
    Boost and Trim Automatic Voltage Regulation (AVR): Gives higher application availability by correcting low and high voltage conditions without using the battery.
  • Intelligent battery management: Maximizes battery performance, life, and reliability through intelligent, precision charging.
  • Power conditioning: Protects connected loads from surges, spikes, lightning, and other power disturbances.
  • Temperature-compensated battery charging: Prolongs battery life by regulating the charge voltage according to battery temperature.
  • Automatic restart of loads after UPS shutdown: Automatically starts up the connected equipment upon the return of utility power.
  • Automatic self-test: Periodic battery self-test ensures early detection of a battery that needs to be replaced.
  • Disconnected battery notification: Warns when a battery is not available to provide backup power.
  • Network manageable: Provides remote management of the UPS over the network.
  • Audible alarms: Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
  • LED status indicators: Quickly understand unit and power status with visual indicators.
  • Serial Connectivity: Provides management of the UPS via a serial port.
  • USB connectivity: Provides management of the UPS via a USB port (not available on all models).
  • Disconnected battery notification: Warns when a battery is not available to provide backup power.
Specifications:

Output

  • Output Power Capacity: 500 Watts / 750 VA
  • Max Configurable Power: 500 Watts / 750 VA
  • Nominal Output Voltage: 120V
  • Output Voltage Distortion: Less than 5% at full load
  • Output Frequency (sync to mains): 57 - 63 Hz for 60 Hz nominal
  • Waveform Type: Sine wave
  • Output Connections: (6) NEMA 5-15R

Input

  • Nominal Input Voltage: 120V
  • Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)
  • Input Connections: NEMA 5-15P
  • Cord Length: 8 feet (2.44 meters)
  • Input voltage range for main operations: 82 - 144V
  • Input voltage adjustable range for mains operation: 75 - 154V

Communications & Management

  • Interface Port(s): SmartSlot,USB
  • Available SmartSlot™ Interface Quantity: 1
  • Control panel: Multi-function LCD status and control console
  • Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays
  • Emergency Power Off (EPO): Optional

Surge Protection and Filtering

  • Surge energy rating: 459 Joules
  • Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

  • Maximum Height: 3.50 inches (89 mm)
  • Maximum Width: 17.00 inches (432 mm)
  • Maximum Depth: 16.00 inches (406 mm)
  • Rack Height: 2U
  • Net Weight: 38.00 lbs. (17.27 kg)
  • Shipping Weight: 46.70 lbs. (21.23 kg)
  • Shipping Height: 9.50 inches (241 mm)
  • Shipping Width: 21.50 inches (546 mm)
  • Shipping Depth: 23.00 inches (584 mm)
  • Color: Black

Environmental

  • Operating Environment: 32 - 104 °F (0 - 40 °C)
  • Operating Relative Humidity: 0 - 95%
  • Operating Elevation: 0-10000 feet (0-3000 meters)
  • Storage Temperature: 5 - 113 °F (-15 - 45 °C)
  • Storage Relative Humidity: 0 - 95%
  • Storage Elevation: 0-50000 feet (0-15000 meters)
  • Audible noise at 1 meter from surface of unit: 42.00 dBA
  • Online Thermal Dissipation: 46.00 BTU/hr

Conformance

  • Regulatory Approvals: CSA,FCC Part 15 Class A,UL 1449,UL 1778
  • Standard Warranty: 3 years repair or replace (excluding battery) and 2 year for battery
  • Equipment protection policy: Lifetime : $150000
  • Environmental Compliance: RoHS 7b Exemption,REACH: Contains No SVHCs
