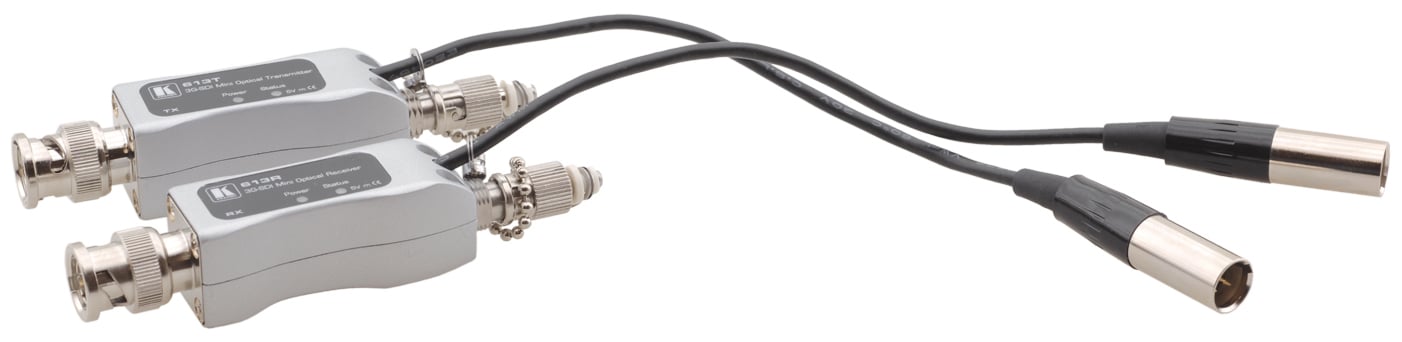

Kramer 613R/T
3G HD-SDI Mini Optical Transmitter & Receiver

OUR PART #:  613R/T

The Kramer 613R/T is a transmitter/receiver pair for digital video signals up to 3G HD-SDI.
Learn More
Our Price: $1,196.00
List Price: $1,495.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer 613R/T
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products
The Kramer 613R/T is a transmitter/receiver pair for digital video signals up to 3G HD-SDI.  The 613T converts the digital signal into an optical signal that it transmits over single-mode fiber optic cable and the 613R decodes the optical signals back to the original digital format video signal.

Kramer 613R/T Features:

  • Max date rate - Up to 3Gbps
  • HDTV compatible
  • Multi-standard operation - SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M), 3G HD-SDI (SMPTE 424M) &
    DVB-ASI
  • Kramer equalization & re-Klocking technology - Rebuilds the digital signal to travel longer distances
  • System range- Up to 18.6 miles at 3G-HD-SDI (1080p)
  • Fiber cable- Single-mode fiber optic with ST connectors

Kramer 613R/T Specifications:

  • Inputs: SDI, HD-SDI, 3G HD-SDI on a 75 Ohm BNC connector (613T); 1x fiber optic ST connector (613R)
  • Outputs: 1x fiber optic ST connector (613T); SDI, HD-SDI, 3G HD-SDI on a 75 Ohm BNC connector (613R)
  • Maxdata rate: Up to 3Gbps
  • Maxrange: 30km (18.6 Miles) @1080p, 3G-SDI format
  • Format: SMPTE 424M (3G-SDI); SMPTE 292M (HD-SDI); SMPTE 259 (SD-SDI, SDI, DVB-ASI)
  • Resolution: Up to WUXGA @60Hz (1.65 Gbps)
  • Dimensions (WxDxH): 0.75" x 3.3" x 0.75" (1.9 x 8.3 x 1.9 cm)
