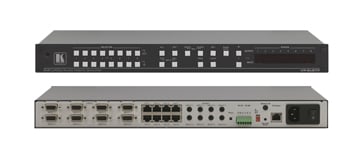

Kramer VP-8X8TP
8x8 Computer Graphics Video & Stereo Audio over Twisted Pair Matrix Switcher

OUR PART #:  VP8X8TP

The VP-8x8TP is a high-performance matrix switcher for computer graphics video and stereo audio signals. The unit routes any or all inputs to any or all twisted pair outputs.
Learn More
Our Price: $2,396.00
List Price: $2,995.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer VP-8X8TP
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products
The VP-8x8TP is a high-performance matrix switcher for computer graphics video and stereo audio signals. The unit routes any or all inputs to any or all twisted pair outputs. A compatible twisted pair receiver converts each output signal back to the original input formats.
  • High resolution - Up to UXGA/1080p.
  • HDTV compatible
  • Inputs - 8 VGA on 15-pin HD connectors (VGA through UXGA), 8 unbalanced stereo audio on 3.5mm mini jacks.
  • Outputs - 8 twisted pairs on RJ-45 connectors.
  • Active input indication reporting - Each input button on the front panel automatically lights when the unit detects a video signal on that input. When an input is selected for switching, the button changes to a different color to indicate it is the active input.
  • Delayed switching - Up to a 3.5s (user selectable) delay for clean switching.
  • Kr-isp Advanced Sync Processing - Ensures compatibility with a wide range of computers (even if the sync level is too low) by restoring the sync signal waveform. Kr-isp® advanced sync processing can be enabled or disabled.
  • Configurable EDID - For each input, via RS-232.
  • Take button - Executes multiple switches all at once
  • Memory location - Stores multiple switches as presets to be recalled and executed when needed.
  • System range - Over 100m (330ft) transmission range between the switcher and the TP receiver.
  • Flexible control options - Front panel, RS-232 and RS-485 (using Kramer Protocols 2000 and 3000), IR remote and optional extension cable, Ethernet with built in Web server.

Specifications:

  • Inputs: 8 VGA on 15-pin HD connectors (VGA through UXGA); 8 unbalanced stereo audio on 3.5mm mini jacks.
  • Outputs: 8 RJ-45 connectors.
  • Max output level: Video: 1.9Vpp; Audio: 3Vpp.
  • Resolution: Up to UXGA, 1080p
  • Audio bandwidth: 18kHz (-3dB).
  • Diff gain: 1.8%
  • Diff phase: 0.3Deg.
  • K-Factor: <0.05%
  • S/N ratio: Video: 60dB @5MHz; Audio: 81dB @1kHz.
  • Crosstalk: Video: –46dB @5MHz; Audio: <–72dB @1kHz.
  • Controls: Front panel buttons, RS-232, RS-485, Ethernet, infrared.
  • Coupling: Video/audio: AC.
  • Audio THD+ noise: 0.035% @1kHz.
  • Audio 2nd harmonic: 0.002% @1kHz.
  • Transmission range: >100m (330ft).
  • Dimensions: 19" x 7.5" x 1U (48.3cm x 19cm x 1U) W, D, H.
